YIMAI POWER Programmable AC Power Source | Variable Frequency & Voltage Power Supply for Laboratory & Industrial Testing

YIMAI POWER Programmable AC Power Source | Variable Frequency & Voltage Power Supply for Laboratory & Industrial Testing

The YIMAI POWER programmable AC power source delivers precise, stable, and adjustable AC power for R&D laboratories, manufacturing testing, and electronic product certification. Featuring a high-resolution LCD display, intuitive knob control, and programmable output settings, this variable frequency power supply supports wide voltage and frequency ranges, making it ideal for testing sensitive elec

Ask Us

Information

Product Title

YIMAI POWER Programmable AC Power Source | Variable Frequency & Voltage Adjustable Pure Sine Wave Power Supply for Laboratory, Industrial Testing & Certification

Product Overview

The YIMAI POWER Programmable AC Power Source is a high-precision, industrial-grade AC power supply engineered to deliver stable, clean, and fully adjustable AC power for a wide range of testing and validation scenarios. Built on advanced pulse width modulation (PWM) technology, this power supply provides pure sine wave output with ultra-low harmonic distortion, allowing engineers and technicians to simulate ideal, abnormal, and extreme power grid conditions. Available in single-phase and three-phase configurations, with customizable voltage, frequency, and power ratings, it is the ideal solution for product R&D, quality control, reliability testing, and global certification compliance.

Core Technical Advantages

Precision Adjustable Output

The power source offers a wide adjustable voltage range (0~300V AC for single-phase, 0~520V AC for three-phase) and frequency range (40~400Hz), with high resolution (0.1V for voltage, 0.1Hz for frequency) and exceptional regulation accuracy (±0.1% for voltage, ±0.01% for frequency). This level of precision ensures accurate and repeatable test results, even for the most sensitive electronic devices.
Pure Sine Wave Output with Low Distortion

It delivers a pure sine wave output with total harmonic distortion (THD) of less than 2% at full load, matching the quality of ideal utility grid power. This clean power protects sensitive test samples from damage and ensures reliable performance during testing, making it suitable for high-precision electronics, medical devices, and aerospace equipment.
Intuitive Programmable Operation

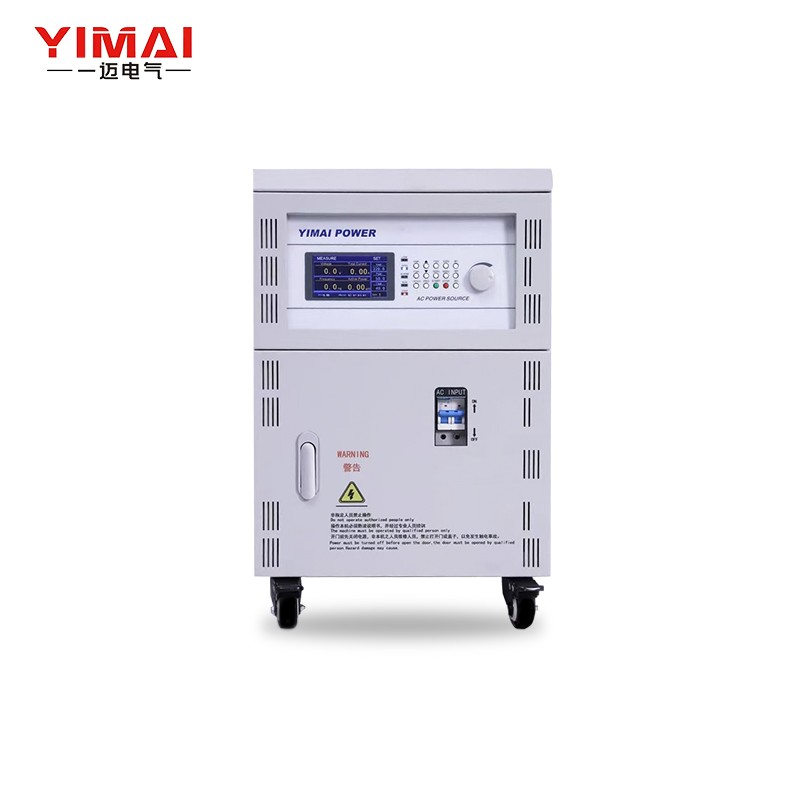

The front panel features a large, high-resolution LCD display that provides real-time monitoring of output voltage, current, frequency, active power, and apparent power. Users can easily set parameters via the keypad and rotary knob, and program custom test sequences (e.g., voltage ramps, step changes, frequency sweeps, and duration cycles) to simulate power outages, surges, and grid fluctuations.
High Stability & Dynamic Response

Equipped with constant voltage/constant frequency (CV/CF) control logic, the power source maintains stable output even under dynamic load changes (0~100% load step), ensuring consistent performance during continuous testing. The advanced cooling system and robust component selection also guarantee long-term reliability and extended service life.
Comprehensive Protection & Safety

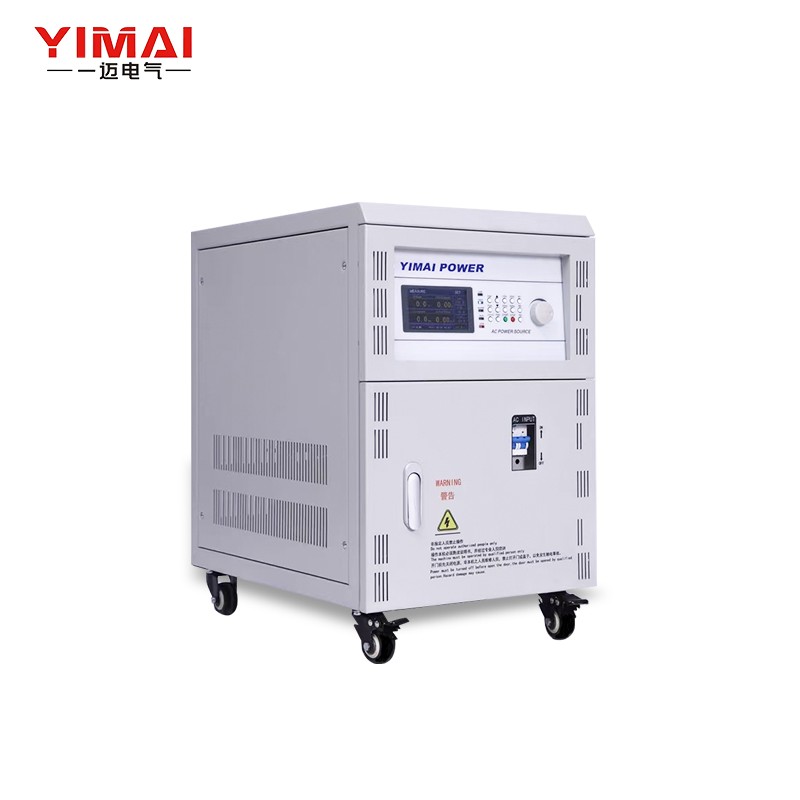

The system includes built-in over-voltage protection (OVP), over-current protection (OCP), over-temperature protection (OTP), and short-circuit protection, preventing damage to both the power supply and the device under test (DUT). The enclosure is made of heavy-duty metal with warning labels and a safety lock, ensuring safe operation in industrial and laboratory environments.
Flexible Communication & Mobility

Optional communication interfaces (RS232/RS485/USB) allow for remote control and data logging, enabling integration with automated test systems. The unit is mounted on heavy-duty casters for easy mobility between test stations, and the compact design saves valuable laboratory floor space.

Technical Specifications (Typical Values)

Parameter	Single-Phase Model	Three-Phase Model (Optional)
Output Waveform	Pure Sine Wave	Pure Sine Wave
Voltage Range	0~300V AC (Adjustable)	0~520V AC (Adjustable)
Frequency Range	40~400Hz (Adjustable)	40~400Hz (Adjustable)
Current Rating	5A / 10A / 20A / Custom	5A / 10A / 20A / Custom (Per Phase)
Power Rating	1.5KVA / 3KVA / 6KVA / Custom	3KVA / 6KVA / 10KVA / Custom
Harmonic Distortion (THD)	<2% (Full Load)	<2% (Full Load)
Voltage Regulation	±0.1% (Line & Load Change)	±0.1% (Line & Load Change)
Frequency Regulation	±0.01%	±0.01%
Display	LCD (V / A / Hz / W / VA)	LCD (Per Phase V / A / Hz / W / VA)
Protection Functions	OVP / OCP / OTP / Short-Circuit	OVP / OCP / OTP / Short-Circuit
Communication Interface	RS232 / RS485 / USB (Optional)	RS232 / RS485 / USB (Optional)

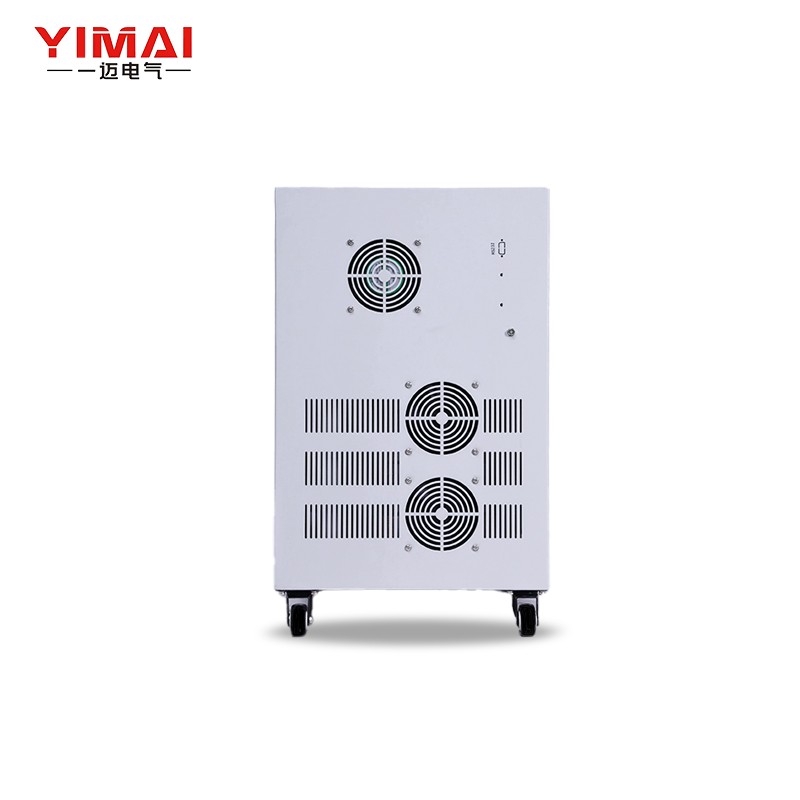

Cooling Method	Forced Air Cooling	Forced Air Cooling
Operating Environment	0~40°C, 20~80%RH (Non-Condensing)	0~40°C, 20~80%RH (Non-Condensing)
Dimensions (W×D×H)	Customizable (e.g., 450×550×750mm)	Customizable (e.g., 600×700×900mm)
Net Weight	Customizable (e.g., 50~80kg)	Customizable (e.g., 80~120kg)

Target Applications

Laboratory R&D: Product performance testing, reliability testing, and failure analysis for consumer electronics, industrial controls, and medical devices.
Manufacturing QA/QC: End-of-line testing for home appliances, power adapters, LED drivers, and automotive electronics to ensure compliance with quality standards.
Certification & Testing Institutes: Simulating global power grid conditions (50Hz/60Hz/400Hz) for CE, UL, FCC, and other international certification tests.
Aerospace & Aviation: Providing 400Hz AC power for testing avionics, aircraft instruments, and military ele

Product Title

YIMAI POWER Programmable AC Power Source | Variable Frequency & Voltage Adjustable Pure Sine Wave Power Supply for Laboratory, Industrial Testing & Certification

Product Overview

The YIMAI POWER Programmable AC Power Source is a high-precision, industrial-grade AC power supply engineered to deliver stable, clean, and fully adjustable AC power for a wide range of testing and validation scenarios. Built on advanced pulse width modulation (PWM) technology, this power supply provides pure sine wave output with ultra-low harmonic distortion, allowing engineers and technicians to simulate ideal, abnormal, and extreme power grid conditions. Available in single-phase and three-phase configurations, with customizable voltage, frequency, and power ratings, it is the ideal solution for product R&D, quality control, reliability testing, and global certification compliance.

Core Technical Advantages

Precision Adjustable Output

The power source offers a wide adjustable voltage range (0~300V AC for single-phase, 0~520V AC for three-phase) and frequency range (40~400Hz), with high resolution (0.1V for voltage, 0.1Hz for frequency) and exceptional regulation accuracy (±0.1% for voltage, ±0.01% for frequency). This level of precision ensures accurate and repeatable test results, even for the most sensitive electronic devices.
Pure Sine Wave Output with Low Distortion

It delivers a pure sine wave output with total harmonic distortion (THD) of less than 2% at full load, matching the quality of ideal utility grid power. This clean power protects sensitive test samples from damage and ensures reliable performance during testing, making it suitable for high-precision electronics, medical devices, and aerospace equipment.
Intuitive Programmable Operation

The front panel features a large, high-resolution LCD display that provides real-time monitoring of output voltage, current, frequency, active power, and apparent power. Users can easily set parameters via the keypad and rotary knob, and program custom test sequences (e.g., voltage ramps, step changes, frequency sweeps, and duration cycles) to simulate power outages, surges, and grid fluctuations.
High Stability & Dynamic Response

Equipped with constant voltage/constant frequency (CV/CF) control logic, the power source maintains stable output even under dynamic load changes (0~100% load step), ensuring consistent performance during continuous testing. The advanced cooling system and robust component selection also guarantee long-term reliability and extended service life.
Comprehensive Protection & Safety

The system includes built-in over-voltage protection (OVP), over-current protection (OCP), over-temperature protection (OTP), and short-circuit protection, preventing damage to both the power supply and the device under test (DUT). The enclosure is made of heavy-duty metal with warning labels and a safety lock, ensuring safe operation in industrial and laboratory environments.
Flexible Communication & Mobility

Optional communication interfaces (RS232/RS485/USB) allow for remote control and data logging, enabling integration with automated test systems. The unit is mounted on heavy-duty casters for easy mobility between test stations, and the compact design saves valuable laboratory floor space.

Technical Specifications (Typical Values)

Parameter	Single-Phase Model	Three-Phase Model (Optional)
Output Waveform	Pure Sine Wave	Pure Sine Wave
Voltage Range	0~300V AC (Adjustable)	0~520V AC (Adjustable)
Frequency Range	40~400Hz (Adjustable)	40~400Hz (Adjustable)
Current Rating	5A / 10A / 20A / Custom	5A / 10A / 20A / Custom (Per Phase)
Power Rating	1.5KVA / 3KVA / 6KVA / Custom	3KVA / 6KVA / 10KVA / Custom
Harmonic Distortion (THD)	<2% (Full Load)	<2% (Full Load)
Voltage Regulation	±0.1% (Line & Load Change)	±0.1% (Line & Load Change)
Frequency Regulation	±0.01%	±0.01%
Display	LCD (V / A / Hz / W / VA)	LCD (Per Phase V / A / Hz / W / VA)
Protection Functions	OVP / OCP / OTP / Short-Circuit	OVP / OCP / OTP / Short-Circuit
Communication Interface	RS232 / RS485 / USB (Optional)	RS232 / RS485 / USB (Optional)
Cooling Method	Forced Air Cooling	Forced Air Cooling
Operating Environment	0~40°C, 20~80%RH (Non-Condensing)	0~40°C, 20~80%RH (Non-Condensing)
Dimensions (W×D×H)	Customizable (e.g., 450×550×750mm)	Customizable (e.g., 600×700×900mm)
Net Weight	Customizable (e.g., 50~80kg)	Customizable (e.g., 80~120kg)

Target Applications

Laboratory R&D: Product performance testing, reliability testing, and failure analysis for consumer electronics, industrial controls, and medical devices.
Manufacturing QA/QC: End-of-line testing for home appliances, power adapters, LED drivers, and automotive electronics to ensure compliance with quality standards.
Certification & Testing Institutes: Simulating global power grid conditions (50Hz/60Hz/400Hz) for CE, UL, FCC, and other international certification tests.
Aerospace & Aviation: Providing 400Hz AC power for testing avionics, aircraft instruments, and military ele

Get the latest price? We'll respond as soon as possible(within 12 hours)
