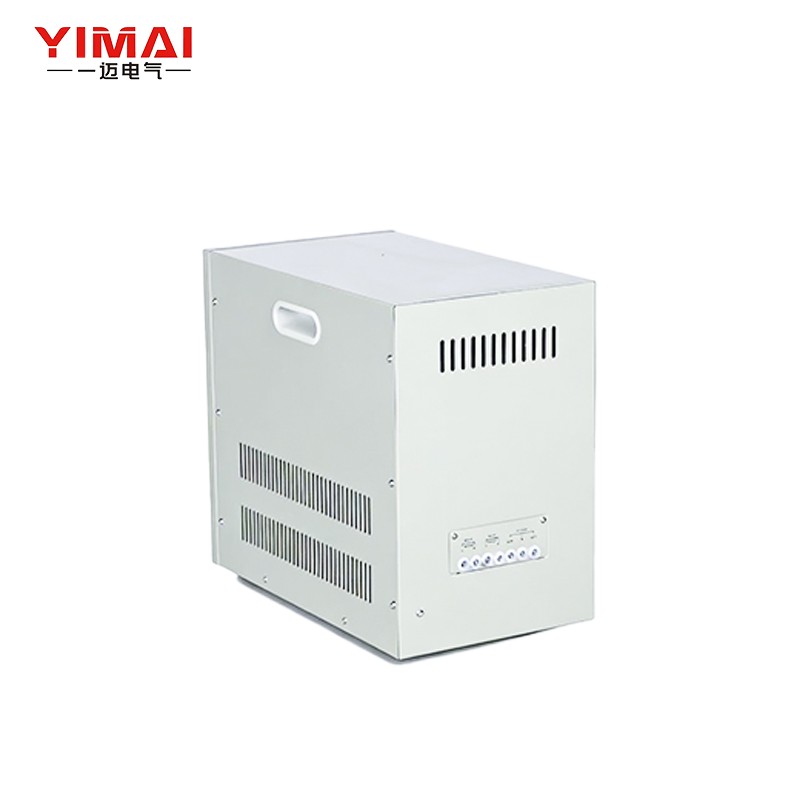

YIMAI SVC-1000VA Single-Phase Automatic Voltage Regulator | 1kVA Servo-Motor Voltage Stabilizer for Home & Small Business Use
The YIMAI SVC-1000VA Single-Phase Automatic Voltage Regulator is a compact, reliable voltage stabilizer designed for home and small business applications. Featuring high-precision servo-motor control, a wide input voltage range, and analog meter monitoring, this 1kVA stabilizer delivers stable 220V AC output, protecting sensitive electronics and small appliances from voltage fluctuations, surges,
- Information
Product Overview
The YIMAI SVC-1000VA Single-Phase Automatic Voltage Regulator (AVR) is a compact, high-performance power stabilization solution engineered for low-power loads. Utilizing advanced servo-motor control technology, this stabilizer automatically adjusts input voltage fluctuations (typically 140V~260V AC) to a precise 220V±1% output, protecting sensitive home appliances, office equipment, and small electronic devices from damage caused by over-voltage, under-voltage, and power surges. With a rated capacity of 1000VA, it is the ideal choice for homes, small offices, and light commercial use.
Core Technical Advantages
-
High-Precision Servo-Motor ControlThe voltage stabilizer employs a high-speed servo motor to drive the voltage regulator, ensuring a fast response time (<1 second) and precise output voltage regulation (±1%), effectively eliminating voltage fluctuations and providing stable power to connected loads.
-
Wide Input Voltage RangeIt accepts a wide input voltage range (typically 140V~260V AC, single-phase), making it suitable for areas with unstable power grids, where voltage often drops below 180V or spikes above 250V. This range ensures continuous operation even under moderate power conditions.
-
Analog Meter MonitoringThe front panel features two analog meters that display real-time input and output voltage, allowing users to easily monitor power quality and check the operating status at a glance. Indicator lights provide visual alerts for normal operation, over-voltage, and under-voltage conditions.
-
Comprehensive Protection MechanismsThe system is equipped with a full suite of built-in protections:
- Over-voltage protection (OVP): Automatically cuts off power when output voltage exceeds safe levels.
- Under-voltage protection (UVP): Disconnects the load when input voltage drops below the minimum threshold.
- Over-load protection (OLP): Shuts down to prevent damage when the load exceeds the 1000VA rating.
- Short-circuit protection: Safeguards against short circuits in the connected equipment.
- Surge protection: Filters out high-voltage spikes caused by lightning or grid switching.
-
Compact & Durable Design
- Uses high-quality copper coils and magnetic cores, ensuring low energy loss and high efficiency (>90%).
- The compact, lightweight metal enclosure provides excellent heat dissipation and mechanical protection, extending the service life to 10+ years.
- The built-in output socket and circuit breaker allow for quick and safe connection to devices.
Technical Specifications (Typical Values)
| Parameter | SVC-1000VA Model |
|---|---|
| Model | YIMAI-SVC-1000VA |
| Type | Single-Phase AC Automatic Voltage Regulator |
| Rated Capacity | 1000VA / 800W (Power Factor 0.8) |
| Input Voltage | 140V~260V AC (Single-Phase) |
| Output Voltage | 220V AC ±1% (Single-Phase) |
| Frequency | 50/60Hz |
| Regulation Accuracy | ±1% |
| Response Time | <1 Second |
| Efficiency | >90% |
| Display | Analog Meters (Input/Output Voltage) |
| Indicator Lights | Power (Green), Over-Voltage (Red), Under-Voltage (Amber) |
| Protection Functions | OVP / UVP / OLP / Short-Circuit / Surge |
| Cooling Method | Natural Convection |
| Noise Level | <55dB |
| Enclosure Material | Metal |
| Mounting | Desktop / Wall-Mount (Optional) |
| Dimensions (W×D×H) | Approx. 220×150×300mm |
| Net Weight | Approx. 12kg |
| Operating Environment | 0~40°C, 20~80%RH (Non-Condensing) |
| Compliance | CE, ISO 9001 |
Target Applications
- Home Appliances: Protects refrigerators, air conditioners, washing machines, TVs, computers, and kitchen appliances from voltage damage.
- Office Equipment: Safeguards printers, scanners, routers, and small servers in small offices.
- Small Business Use: Powers POS systems, cash registers, and lighting systems in shops and restaurants.
- Electronic Devices: Protects sensitive electronics such as gaming consoles, audio equipment, and medical devices.
- Rural & Remote Areas: Ensures stable power for households in regions with unstable grid voltage.
Why Choose YIMAI SVC-1000VA Voltage Regulator?
YIMAI is a trusted manufacturer of power protection solutions, with years of experience delivering high-quality voltage stabilizers to global customers. Our SVC series regulators are rigorously tested to meet international standards (CE, ISO), ensuring exceptional reliability, performance, and durability. The compact design and affordable price make it the ideal choice for home and small business users, providing peace of mind in unstable power environments.
After-Sales Service & Support
We offer a 2-year warranty and lifetime technical support for all SVC series voltage regulators. Our customer service team is available to assist with installation, troubleshooting, and maintenance, ensuring maximum uptime for your equipment.
FAQ (Frequently Asked Questions)
Q1: What is the maximum load this stabilizer can handle?
A: The SVC-1000VA model has a rated capacity of 1000VA, with a typical power factor of 0.8, so the maximum continuous load is approximately 800W. It is recommended to keep the load below 80% of the rated capacity for optimal performance and longevity.
Q2: What is the input voltage range? Can it work in areas with low voltage?
A: The standard input range is 140V~260V AC, which can handle voltage drops as low as 140V, making it suitable for areas with moderate power instability. For areas with extremely low voltage, we offer custom models with a wider input range (90V~260V AC).
Q3: Is the output voltage always 220V? Can it be adjusted?
A: The output voltage is fixed at 220V AC ±1% for stable operation. Minor adjustments (±5%) can be made via an internal potentiometer if required.
Q4: Does this stabilizer protect against power surges and lightning?
A: Yes, it includes built-in surge protection to filter out high-voltage spikes caused by lightning or grid switching, protecting your equipment from damage.
Q5: How noisy is the stabilizer during operation?
A: The noise level is <55dB, which is quieter than a typical conversation, making it suitable for home and office environments.
Q6: Can I mount this stabilizer on the wall?
A: Yes, the compact design supports both desktop placement and wall-mount installation, saving valuable floor space.
Q7: What is the warranty period? What after-sales support is provided?
A: All SVC series voltage regulators come with a 2-year warranty, and we offer lifetime technical support, including troubleshooting and repair services worldwide.
Product Overview
The YIMAI SVC-1000VA Single-Phase Automatic Voltage Regulator (AVR) is a compact, high-performance power stabilization solution engineered for low-power loads. Utilizing advanced servo-motor control technology, this stabilizer automatically adjusts input voltage fluctuations (typically 140V~260V AC) to a precise 220V±1% output, protecting sensitive home appliances, office equipment, and small electronic devices from damage caused by over-voltage, under-voltage, and power surges. With a rated capacity of 1000VA, it is the ideal choice for homes, small offices, and light commercial use.
Core Technical Advantages
-
High-Precision Servo-Motor ControlThe voltage stabilizer employs a high-speed servo motor to drive the voltage regulator, ensuring a fast response time (<1 second) and precise output voltage regulation (±1%), effectively eliminating voltage fluctuations and providing stable power to connected loads.
-
Wide Input Voltage RangeIt accepts a wide input voltage range (typically 140V~260V AC, single-phase), making it suitable for areas with unstable power grids, where voltage often drops below 180V or spikes above 250V. This range ensures continuous operation even under moderate power conditions.
-
Analog Meter MonitoringThe front panel features two analog meters that display real-time input and output voltage, allowing users to easily monitor power quality and check the operating status at a glance. Indicator lights provide visual alerts for normal operation, over-voltage, and under-voltage conditions.
-
Comprehensive Protection MechanismsThe system is equipped with a full suite of built-in protections:
- Over-voltage protection (OVP): Automatically cuts off power when output voltage exceeds safe levels.
- Under-voltage protection (UVP): Disconnects the load when input voltage drops below the minimum threshold.
- Over-load protection (OLP): Shuts down to prevent damage when the load exceeds the 1000VA rating.
- Short-circuit protection: Safeguards against short circuits in the connected equipment.
- Surge protection: Filters out high-voltage spikes caused by lightning or grid switching.
-
Compact & Durable Design
- Uses high-quality copper coils and magnetic cores, ensuring low energy loss and high efficiency (>90%).
- The compact, lightweight metal enclosure provides excellent heat dissipation and mechanical protection, extending the service life to 10+ years.
- The built-in output socket and circuit breaker allow for quick and safe connection to devices.
Technical Specifications (Typical Values)
| Parameter | SVC-1000VA Model |
|---|---|
| Model | YIMAI-SVC-1000VA |
| Type | Single-Phase AC Automatic Voltage Regulator |
| Rated Capacity | 1000VA / 800W (Power Factor 0.8) |
| Input Voltage | 140V~260V AC (Single-Phase) |
| Output Voltage | 220V AC ±1% (Single-Phase) |
| Frequency | 50/60Hz |
| Regulation Accuracy | ±1% |
| Response Time | <1 Second |
| Efficiency | >90% |
| Display | Analog Meters (Input/Output Voltage) |
| Indicator Lights | Power (Green), Over-Voltage (Red), Under-Voltage (Amber) |
| Protection Functions | OVP / UVP / OLP / Short-Circuit / Surge |
| Cooling Method | Natural Convection |
| Noise Level | <55dB |
| Enclosure Material | Metal |
| Mounting | Desktop / Wall-Mount (Optional) |
| Dimensions (W×D×H) | Approx. 220×150×300mm |
| Net Weight | Approx. 12kg |
| Operating Environment | 0~40°C, 20~80%RH (Non-Condensing) |
| Compliance | CE, ISO 9001 |
Target Applications
- Home Appliances: Protects refrigerators, air conditioners, washing machines, TVs, computers, and kitchen appliances from voltage damage.
- Office Equipment: Safeguards printers, scanners, routers, and small servers in small offices.
- Small Business Use: Powers POS systems, cash registers, and lighting systems in shops and restaurants.
- Electronic Devices: Protects sensitive electronics such as gaming consoles, audio equipment, and medical devices.
- Rural & Remote Areas: Ensures stable power for households in regions with unstable grid voltage.
Why Choose YIMAI SVC-1000VA Voltage Regulator?
YIMAI is a trusted manufacturer of power protection solutions, with years of experience delivering high-quality voltage stabilizers to global customers. Our SVC series regulators are rigorously tested to meet international standards (CE, ISO), ensuring exceptional reliability, performance, and durability. The compact design and affordable price make it the ideal choice for home and small business users, providing peace of mind in unstable power environments.
After-Sales Service & Support
We offer a 2-year warranty and lifetime technical support for all SVC series voltage regulators. Our customer service team is available to assist with installation, troubleshooting, and maintenance, ensuring maximum uptime for your equipment.
FAQ (Frequently Asked Questions)
Q1: What is the maximum load this stabilizer can handle?
A: The SVC-1000VA model has a rated capacity of 1000VA, with a typical power factor of 0.8, so the maximum continuous load is approximately 800W. It is recommended to keep the load below 80% of the rated capacity for optimal performance and longevity.
Q2: What is the input voltage range? Can it work in areas with low voltage?
A: The standard input range is 140V~260V AC, which can handle voltage drops as low as 140V, making it suitable for areas with moderate power instability. For areas with extremely low voltage, we offer custom models with a wider input range (90V~260V AC).
Q3: Is the output voltage always 220V? Can it be adjusted?
A: The output voltage is fixed at 220V AC ±1% for stable operation. Minor adjustments (±5%) can be made via an internal potentiometer if required.
Q4: Does this stabilizer protect against power surges and lightning?
A: Yes, it includes built-in surge protection to filter out high-voltage spikes caused by lightning or grid switching, protecting your equipment from damage.
Q5: How noisy is the stabilizer during operation?
A: The noise level is <55dB, which is quieter than a typical conversation, making it suitable for home and office environments.
Q6: Can I mount this stabilizer on the wall?
A: Yes, the compact design supports both desktop placement and wall-mount installation, saving valuable floor space.
Q7: What is the warranty period? What after-sales support is provided?
A: All SVC series voltage regulators come with a 2-year warranty, and we offer lifetime technical support, including troubleshooting and repair services worldwide.
