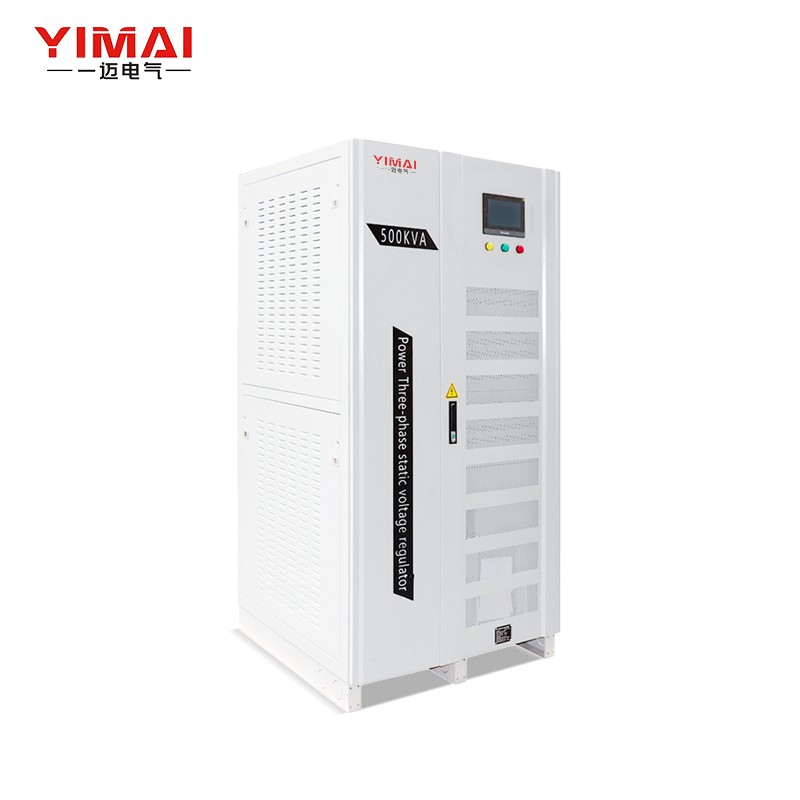

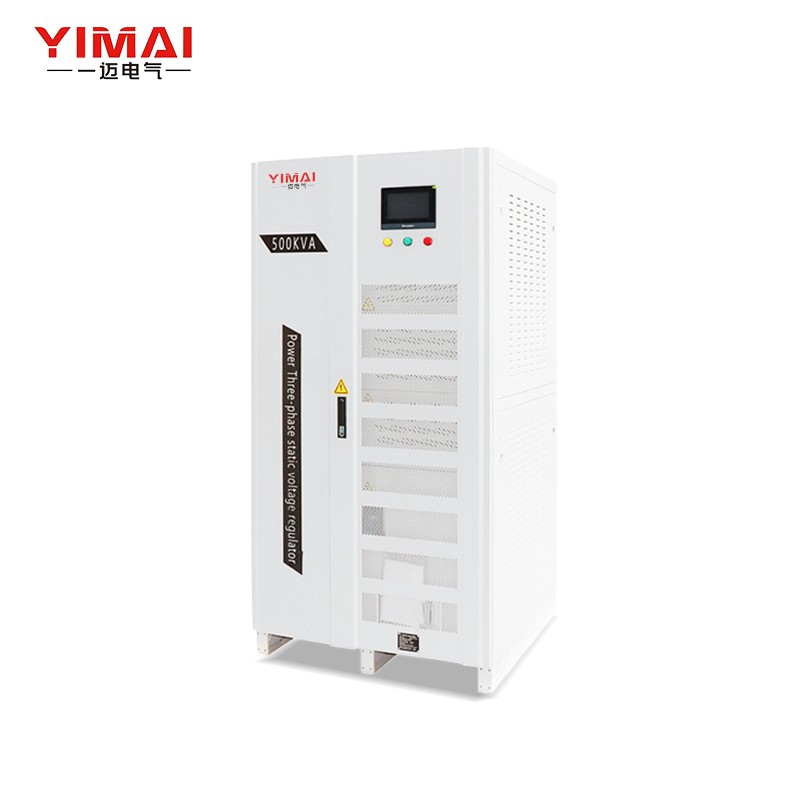

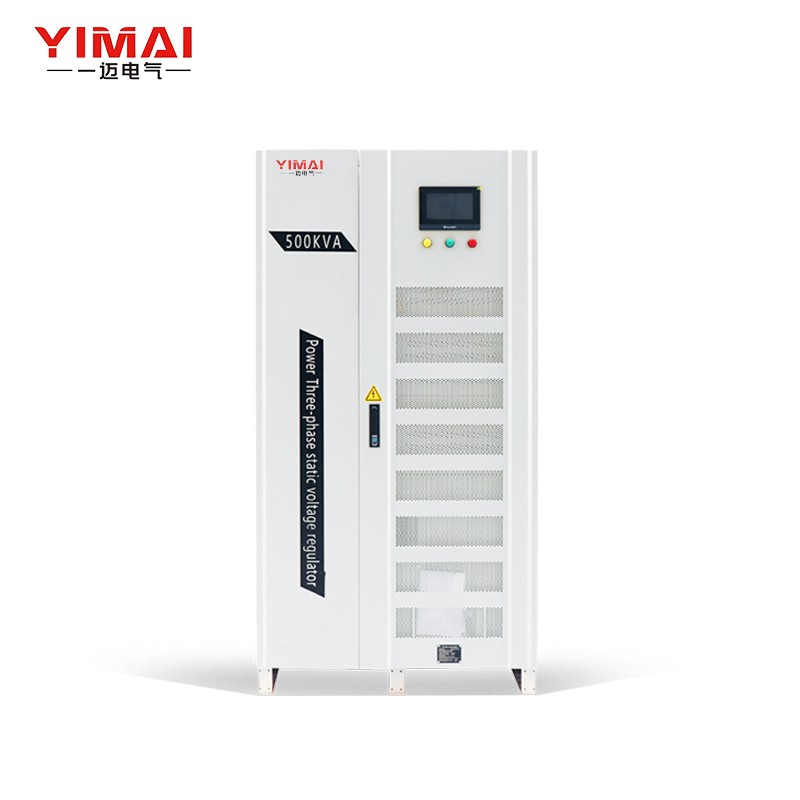

YIMAI SBW Series Three-Phase Fully Automatic Voltage Regulator | 10kVA~1000kVA Industrial High-Power Stabilizer with LCD Display
The YIMAI SBW Series Three-Phase Fully Automatic Voltage Regulator is an industrial-grade, high-power voltage stabilization solution designed for large-scale critical loads. Featuring advanced microcomputer control, a super-wide input voltage range, and real-time LCD monitoring, this 10kVA~1000kVA stabilizer delivers precise 380V/400V AC output, protecting heavy industrial machinery, data centers,
- Information
Product Overview
The YIMAI SBW Series Three-Phase Fully Automatic Voltage Regulator is a heavy-duty, high-capacity power stabilization system engineered for industrial and infrastructure applications where power stability is mission-critical. Built with a compensated voltage regulation structure and microcomputer intelligent control, this AVR automatically adjusts severe input voltage fluctuations (typically 240V~480V AC) to a precise 380V±0.5% output, effectively eliminating voltage sags, surges, and harmonic distortion. Available in capacities from 10kVA up to 1000kVA, it is the ideal solution for large factories, power substations, data centers, and mining operations.
Core Technical Advantages
-
Microcomputer Intelligent Control & LCD Monitoring
- Adopts advanced microcomputer control technology for fully automatic voltage regulation, with no manual adjustment required.
- Equipped with a large LCD display that shows real-time three-phase input/output voltage, load percentage, and fault codes, enabling intuitive monitoring and quick troubleshooting.
- Supports fault self-diagnosis and audible/visual alarm for over-voltage, under-voltage, overload, and phase loss issues.
-
Compensated Voltage Regulation Structure
- Uses a compensated voltage regulation design, achieving higher regulation accuracy (±0.5%) and faster response time (<0.5 seconds) compared to traditional servo-motor AVRs.
- Handles large load impact and transient voltage fluctuations more effectively, suitable for heavy industrial loads with high inrush current.
-
Super-Wide Input Voltage Range
- Accepts an ultra-wide input voltage range of 240V~480V AC (three-phase), making it ideal for regions with extremely unstable power grids, such as mining areas and remote industrial zones.
- Supports 50/60Hz frequency, compatible with global power standards.
-
High-Capacity & High-Efficiency Design
- Capacities range from 10kVA to 1000kVA, meeting the needs of large-scale industrial and infrastructure projects.
- Uses high-quality copper coils and amorphous silicon steel cores, achieving efficiency >95% and low no-load loss, significantly reducing energy consumption.
- Modular parallel operation is supported for capacities above 500kVA, enabling unlimited capacity expansion.
-
Comprehensive Safety & Protection Mechanisms
- Over-voltage/Under-voltage protection: Automatically cuts off output when voltage exceeds safe limits.
- Over-load/Short-circuit protection: Shuts down to prevent damage to the stabilizer and connected loads.
- Phase sequence/Phase loss protection: Prevents damage to three-phase motors and equipment.
- Over-temperature protection: Built-in temperature sensor and forced air cooling system prevent overheating.
- Lightning/Surge protection: Built-in surge arrestor filters out high-voltage spikes from lightning or grid switching.
-

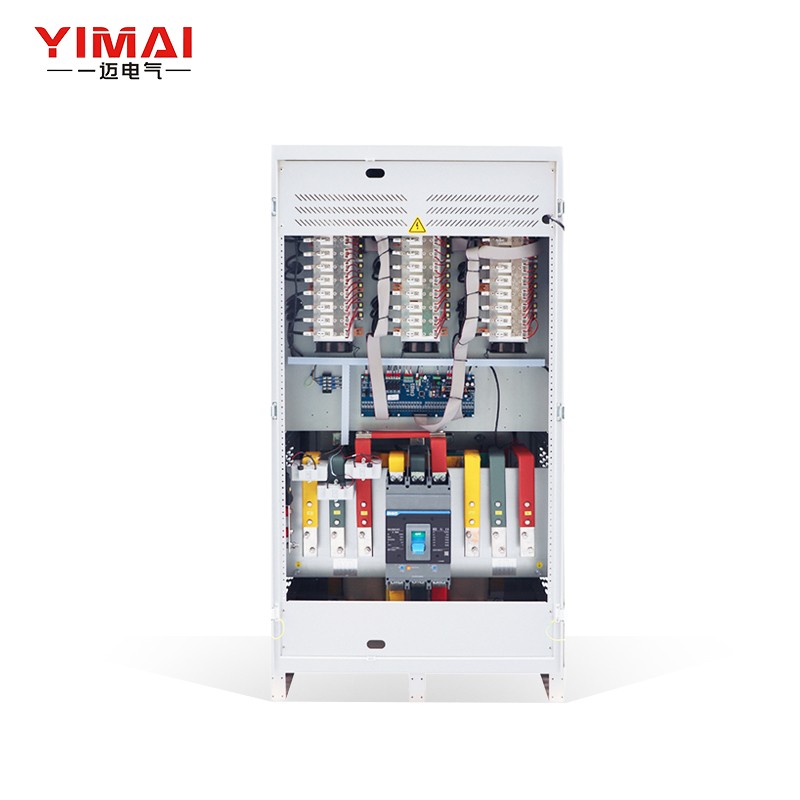

Robust & Durable Industrial Enclosure
- Heavy-duty metal enclosure with IP20 protection rating, suitable for harsh industrial environments.
- Bottom ventilation grille and forced air cooling system ensure efficient heat dissipation under full load.
- Lockable cabinet door ensures physical security and easy access for maintenance.
Technical Specifications (Typical Values)
表格
| Parameter | SBW-100kVA Model | SBW-300kVA Model | SBW-1000kVA Model |
|---|---|---|---|
| Model | YIMAI-SBW-100kVA | YIMAI-SBW-300kVA | YIMAI-SBW-1000kVA |
| Type | Three-Phase Fully Automatic Voltage Regulator | Three-Phase Fully Automatic Voltage Regulator | Three-Phase Fully Automatic Voltage Regulator |
| Rated Capacity | 100kVA / 80kW | 300kVA / 240kW | 1000kVA / 800kW |
| Input Voltage | 240V~480V AC (Three-Phase) | 240V~480V AC (Three-Phase) | 240V~480V AC (Three-Phase) |
| Output Voltage | 380V AC ±0.5% (Three-Phase) | 380V AC ±0.5% (Three-Phase) | 380V AC ±0.5% (Three-Phase) |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Regulation Accuracy | ±0.5% | ±0.5% | ±0.5% |
| Response Time | <0.5 Seconds | <0.5 Seconds | <0.5 Seconds |
| Efficiency | >95% | >95% | >95% |
| Display | LCD (Three-Phase Voltage/Load/Fault) | LCD (Three-Phase Voltage/Load/Fault) | LCD (Three-Phase Voltage/Load/Fault) |
| Protection | OVP/UVP/OLP/Short-Circuit/Phase Sequence/Surge/Over-Temperature | OVP/UVP/OLP/Short-Circuit/Phase Sequence/Surge/Over-Temperature | OVP/UVP/OLP/Short-Circuit/Phase Sequence/Surge/Over-Temperature |
| Cooling Method | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
| Noise Level | <68dB | <70dB | <72dB |
| Enclosure Material | Metal (IP20) | Metal (IP20) | Metal (IP20) |
| Mounting | Floor-Standing | Floor-Standing | Floor-Standing |
| Dimensions (W×D×H) | 1000×800×1800mm | 1400×1000×2200mm | 2000×1200×2500mm |
| Net Weight | ~450kg | ~1200kg | ~3500kg |
| Operating Environment | -15°C~45°C, 20~90%RH (Non-Condensing) | -15°C~45°C, 20~90%RH (Non-Condensing) | -15°C~45°C, 20~90%RH (Non-Condensing) |
| Compliance | CE, ISO 9001, IEC 60947 | CE, ISO 9001, IEC 60947 | CE, ISO 9001, IEC 60947 |
Target Applications
- Large Industrial Manufacturing: Protects heavy machinery, rolling mills, large motors, and automated production lines.
- Mining & Quarrying: Ensures stable power for mining equipment, crushers, and conveyor systems in remote areas.
- Data Centers & Cloud Computing: Safeguards large server clusters and storage systems from voltage fluctuations.
- Power Substations & Infrastructure: Provides stable power for transformers, switchgear, and distribution systems.
- Oil & Gas Platforms: Powers drilling rigs, pumps, and control systems in offshore and onshore facilities.
- Large-Scale Construction Sites: Supplies stable power to cranes, concrete mixers, and construction equipment.
Why Choose YIMAI SBW Series AVR?
YIMAI is a leading manufacturer of high-power industrial voltage stabilizers, with decades of experience serving global heavy industry and infrastructure customers. The SBW series stands out with its microcomputer control, super-wide input range, and high-capacity modular design, making it the most reliable choice for large-scale critical loads. Rigorous testing to international standards ensures exceptional durability and performance, minimizing downtime and operational costs.
After-Sales Service & Support
We offer a 3-year warranty and lifetime technical support for all SBW series AVRs. Our global service network provides on-site installation, commissioning, and maintenance services, including voltage calibration and component replacement. Our technical team is available 24/7 to assist with system design, troubleshooting, and custom solution development.
FAQ (Frequently Asked Questions)
Q1: What is the difference between SBW series and other three-phase AVRs?
A: The SBW series uses a compensated voltage regulation structure and microcomputer control, offering higher accuracy (±0.5%), faster response (<0.5s), and a wider input range (240V~480V) compared to traditional servo-motor AVRs, making it suitable for more severe power environments.
Q2: Can this stabilizer handle a 100kVA load continuously?
A: Yes, the SBW-100kVA model is rated for 100kVA continuous operation, with a power factor of 0.8, supporting up to 80kW of real power load. It is recommended to keep the load below 90% of rated capacity for optimal lifespan.
Q3: What is the minimum input voltage it can handle?
A: The standard input range is 240V~480V AC, which can handle voltage drops as low as 240V (80% of nominal 380V), making it ideal for areas with severe power shortages.
Q4: Is the output voltage adjustable?
A: The output voltage is factory-set to 380V±0.5%, but we can customize it to 400V or 415V according to regional requirements before delivery.
Q5: Does it support parallel operation for higher capacity?
A: Yes, models above 500kVA support parallel operation, allowing you to combine multiple units to achieve capacities up to 1000kVA or higher.
Q6: How noisy is it during operation?
A: The noise level is <68dB for 100kVA, <70dB for 300kVA, and <72dB for 1000kVA, which is acceptable for most industrial environments.
Q7: Can it be used outdoors?
A: The standard enclosure is IP20 (indoor use). For outdoor installation, we offer custom IP54/IP55 enclosures with weatherproofing and temperature control.
Q8: What is the warranty period?
A: All SBW series AVRs come with a 3-year warranty, and we offer lifetime technical support, including on-site maintenance and emergency repair services.
