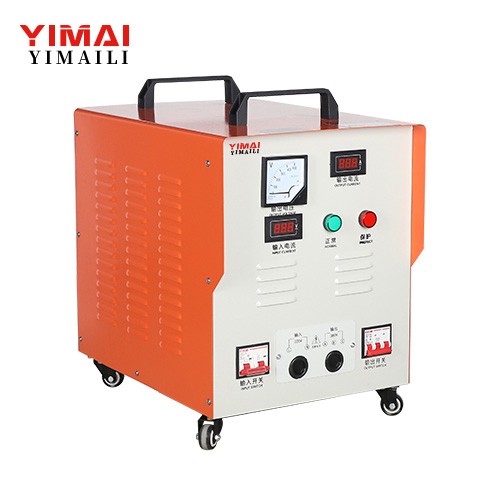

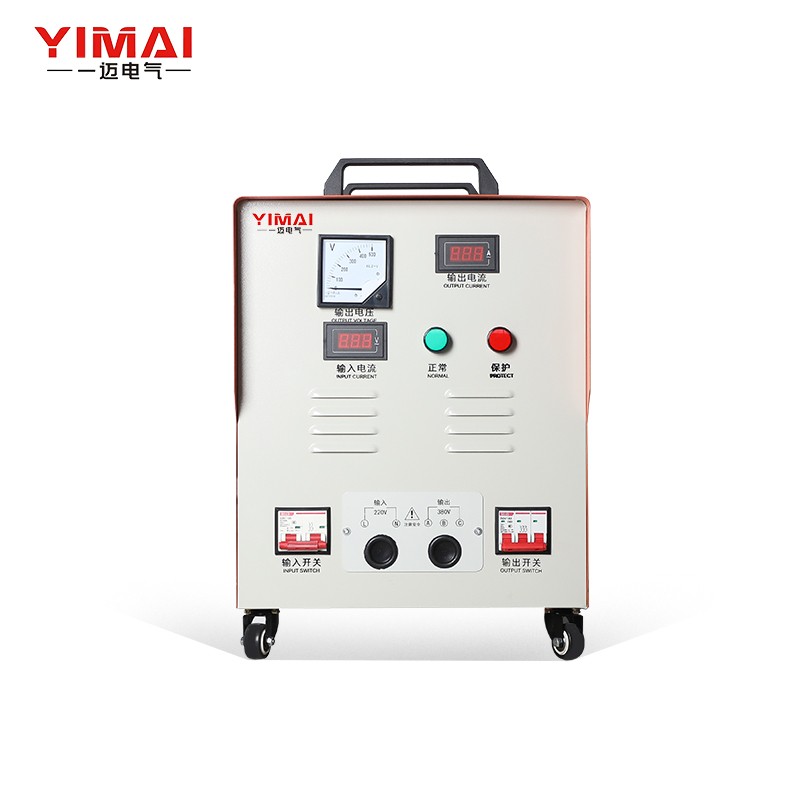

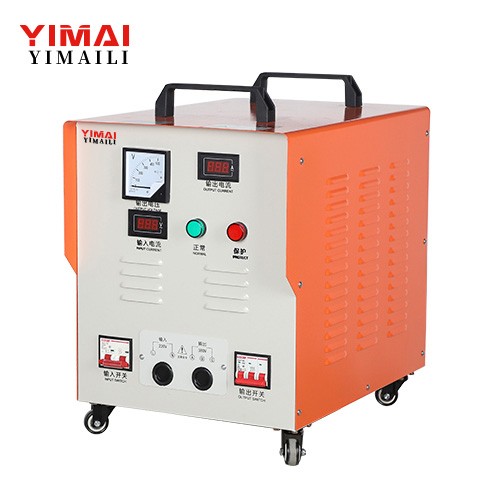

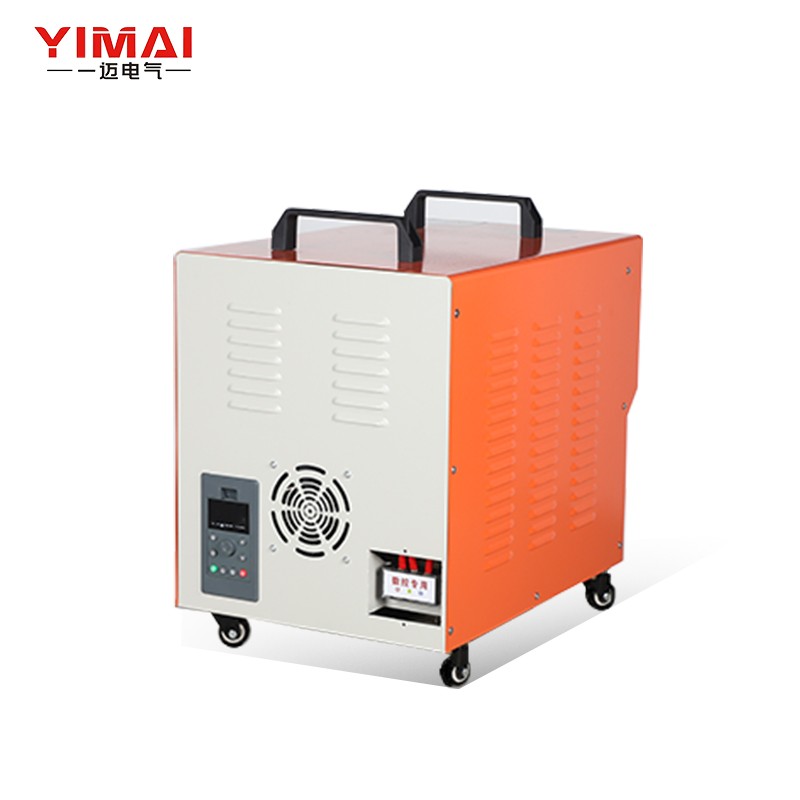

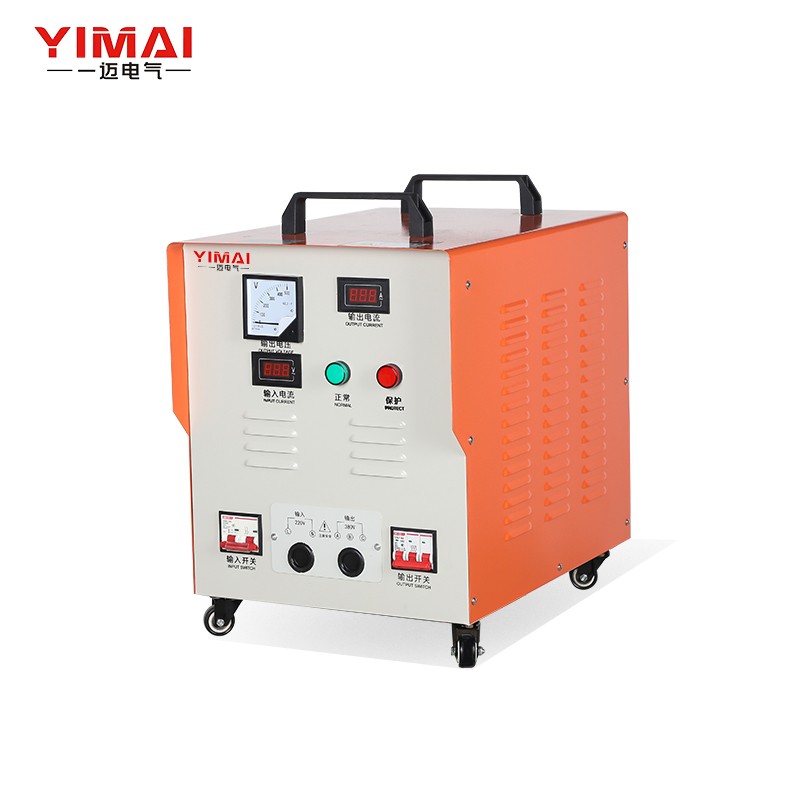

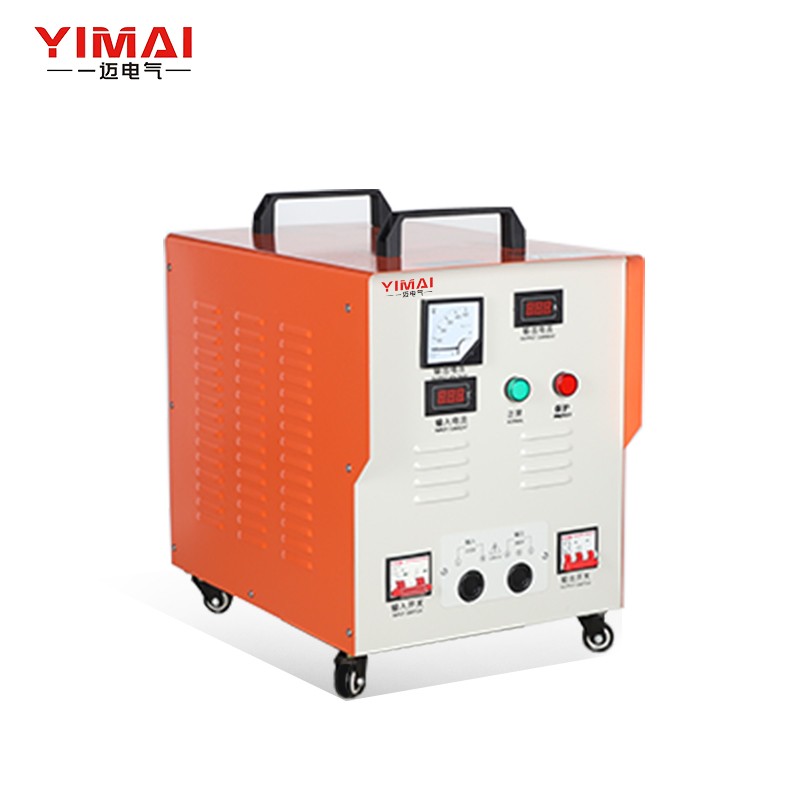

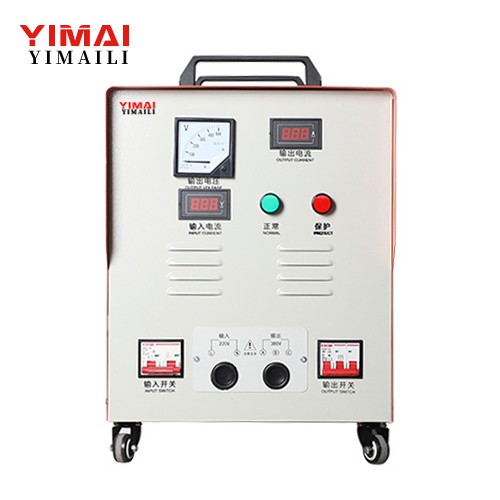

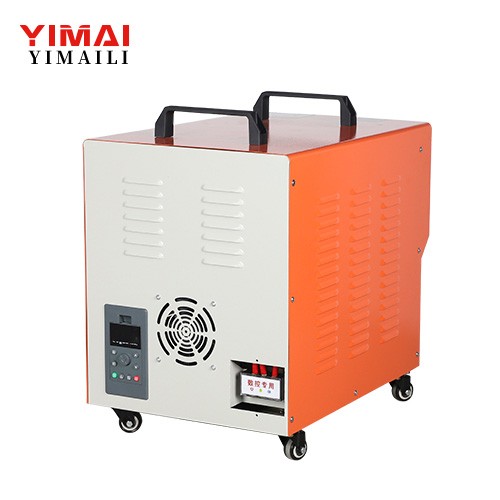

STEP-UP TRANSFORMERS(AHK)
The core function of a step-up transformer is to increase voltage. On one hand, it can raise low voltage (e.g., 10kV from power plants, several hundred volts from new energy generation) to high voltage (e.g., 110kV and above, 10kV for grid connection). This not only reduces power loss during long-distance transmission and saves costs, but also helps integrate electricity from new energy sources li
- Information
Technical Features
Standard civil mains input: Saves tedious three-phase electricity application procedures, labor and hidden costs.
Industrial-grade three-phase output (nominally civil single-phase): Excellent economic benefits.
Imported core components: Stable performance, long service life.
Full electrical isolation between single-phase input and three-phase output: Safe and reliable.
Wide input voltage range: Adapts to generally low mains voltage in various regions.
Comprehensive output protection: Covers overvoltage, overload, overtemperature, short-circuit and self-diagnosis.
Mains disturbance filtering: Acts as a high-quality frequency/voltage stabilizer, providing stable and clean power for downstream equipment.
Parameter information
|
|
Details |
|
Model |
AHK |
|
Brand |
YIMAILI&YIMAI |
|
Place of Origin |
Mainland China (中国大陆) |
|
|
Shang Hai |
|
Color Classification |
1.5KW (Three - phase three - wire), 2.2KW (Three - phase three - wire), 3KW (Three - phase three - wire), 4KW (Three - phase) |
|
Input Voltage |
180 - 220V (±) |
|
Output Voltage |
380V (±1 - 3%) |
|
Working Frequency |
50 - 60Hz |
|
Working Temperature |
-21°C - 52°C |
|
Response Speed |
10MS |
|
Adjustment Speed |
100V/S |
|
Common Specifications |
5 - 10 - 15 - 20KW |
|
Power Consumption |
Calculated according to equipment power (for household use) |
|
Name |
Converter (转换器) |
|
Insulation Resistance |
≥50Ω |
|
Relative Humidity |
≤90% |
Application Scope of Step-Up Transformers
Power System: Used in thermal, hydropower, and nuclear plants for long-distance transmission. It boosts generator output (e.g., 10kV) to high voltage (e.g., 110kV-500kV) to reduce transmission loss.
New Energy Field: Applied in centralized PV stations, large wind farms, and energy storage systems. It raises low output (hundreds of volts) to grid-connected voltage (e.g., 10kV/35kV) for smooth grid integration.
Industrial Production: Powers high-voltage equipment (steel rolling motors, chemical compressors, high-voltage testers) by converting factory low voltage (e.g., 380V) to required high voltage.
Special Scenarios: Supplies temporary high-voltage equipment in field work (oil exploration, mining) or emergency systems. Mobile models boost temporary generator output (e.g., 400V) to meet equipment needs.
Technical Features
Standard civil mains input: Saves tedious three-phase electricity application procedures, labor and hidden costs.
Industrial-grade three-phase output (nominally civil single-phase): Excellent economic benefits.
Imported core components: Stable performance, long service life.
Full electrical isolation between single-phase input and three-phase output: Safe and reliable.
Wide input voltage range: Adapts to generally low mains voltage in various regions.
Comprehensive output protection: Covers overvoltage, overload, overtemperature, short-circuit and self-diagnosis.
Mains disturbance filtering: Acts as a high-quality frequency/voltage stabilizer, providing stable and clean power for downstream equipment.
