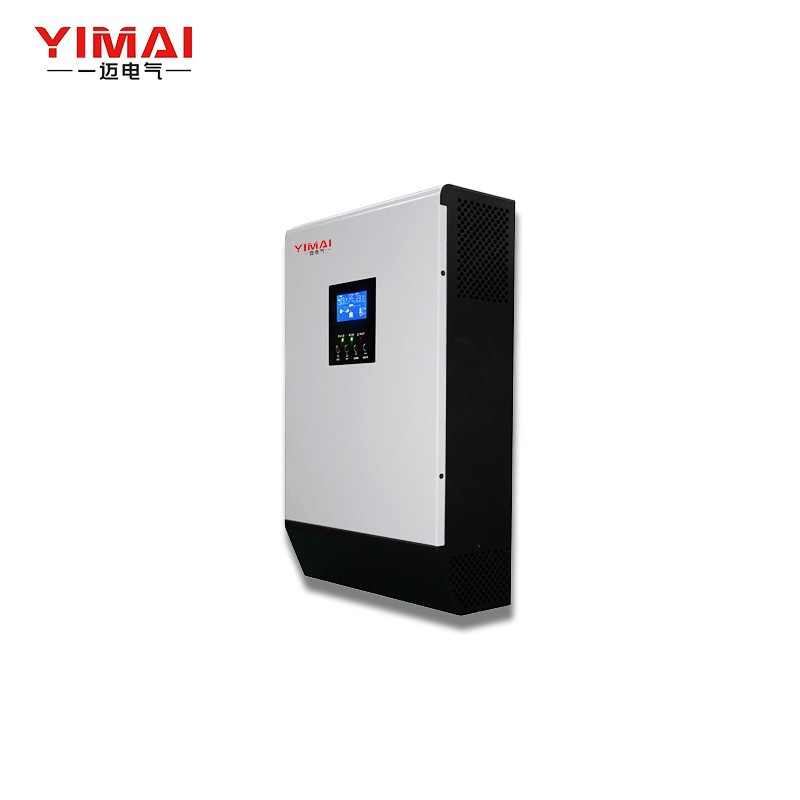

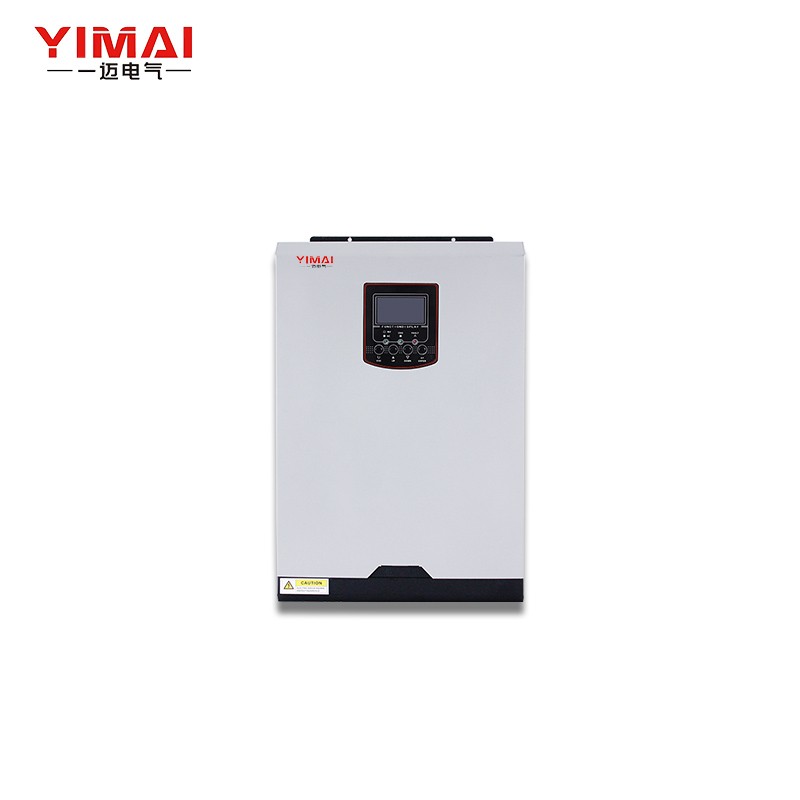

YIMAI Hybrid Solar Inverter | Off-Grid/Grid-Tie Pure Sine Wave Inverter with MPPT Charge Controller for Solar Energy Systems
The YIMAI Hybrid Solar Inverter is an all-in-one solar power solution integrating a pure sine wave inverter, MPPT solar charge controller, and battery charger. Designed for off-grid and grid-tie solar systems, it efficiently converts DC power from solar panels and batteries into stable AC power, providing reliable energy for homes, small businesses, and off-grid installations while maximizing sola
- Information
Product Overview
The YIMAI Hybrid Solar Inverter is a high-performance, all-in-one solar energy conversion system engineered to integrate solar power, battery storage, and grid power into a single unit. Combining a pure sine wave inverter, advanced MPPT solar charge controller, and intelligent battery management, this hybrid inverter is ideal for off-grid living, residential solar systems, and backup power applications. Available in capacities from 1kW to 10kW, it supports both off-grid and grid-tie operation, offering flexible, eco-friendly power solutions for homes and small businesses.
Core Technical Advantages
-
All-In-One Hybrid DesignIntegrates a pure sine wave inverter, MPPT solar charge controller, battery charger, and grid charger into one compact unit, eliminating the need for separate components and reducing installation complexity and cost.
-
High-Efficiency MPPT Solar Charging
- Built-in maximum power point tracking (MPPT) charge controller with up to 99.5% tracking efficiency, maximizing solar energy harvest even in low-light conditions.
- Wide PV input voltage range (typically 120V~450V DC), compatible with various solar panel configurations and sizes.
- Supports multiple charging modes (solar priority, grid priority, battery priority) to optimize energy usage and reduce grid dependency.
-
Pure Sine Wave Inverter Output
- Delivers stable 220V/110V AC pure sine wave power, compatible with sensitive electronics (computers, appliances, medical devices) and heavy-duty loads (power tools, pumps).
- Inverter efficiency up to 97%, minimizing energy loss and maximizing usable power.
- Supports continuous overload operation (125% load for 30 minutes) to handle peak power demands.
-
Intelligent Battery Management System (BMS)
- Monitors battery state of charge (SoC) and health (SoH) in real time, providing protection against over-charge, over-discharge, over-current, and short-circuit.
- Supports various battery types (lead-acid, LiFePO4, gel) with customizable charging/discharging parameters to extend battery lifespan.
- Auto-adjusts charging current based on battery temperature to optimize performance in extreme climates.
-
Flexible Grid-Tie & Off-Grid Operation
- Off-Grid Mode: Operates independently from the grid, using solar and battery power to supply loads, ideal for remote areas without grid access.
- Grid-Tie Mode: Feeds excess solar power back to the grid (where permitted) to reduce electricity bills, while drawing power from the grid when solar/battery power is insufficient.
- Seamless switching between grid and battery power ensures uninterrupted power supply to critical loads during outages.
-
Smart Monitoring & Control
- Front-panel LCD display and keypad allow for easy configuration and real-time monitoring of solar input, battery status, load power, and grid status.
- Optional WiFi/Bluetooth communication enables remote monitoring and control via smartphone app or PC, allowing users to adjust settings and check system status from anywhere.
- Supports data logging and fault diagnosis to simplify maintenance and troubleshooting.
-
Comprehensive Safety & Protection
- Overload, short-circuit, and over-temperature protection for both inverter and charge controller.
- Over-voltage, under-voltage, and reverse polarity protection for solar PV and battery inputs.
- Lightning and surge protection to safeguard the system from electrical storms.
- Isolated design ensures user safety during operation and maintenance.
Technical Specifications (Typical Values)
表格
| Parameter | 3kW Model | 5kW Model | 10kW Model |
|---|---|---|---|
| Model | YIMAI-HSI-3kW | YIMAI-HSI-5kW | YIMAI-HSI-10kW |
| Inverter Type | Hybrid Off-Grid/Grid-Tie | Hybrid Off-Grid/Grid-Tie | Hybrid Off-Grid/Grid-Tie |
| Rated Power | 3kW | 5kW | 10kW |
| Output Voltage | 220V AC ±1% (Single-Phase) | 220V AC ±1% (Single-Phase) | 220V/380V AC (Three-Phase Optional) |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Inverter Efficiency | Up to 97% | Up to 97% | Up to 96% |
| MPPT Charge Controller | 60A | 80A | 100A |
| PV Input Voltage | 120V~450V DC | 120V~450V DC | 200V~500V DC |
| Battery Voltage | 48V DC | 48V DC | 96V/192V DC |
| Supported Battery Types | Lead-Acid / LiFePO4 / Gel | Lead-Acid / LiFePO4 / Gel | Lead-Acid / LiFePO4 / Gel |
| Grid Voltage | 220V AC ±15% | 220V AC ±15% | 380V AC ±15% |
| Communication | USB / RS485 / WiFi/Bluetooth (Optional) | USB / RS485 / WiFi/Bluetooth (Optional) | USB / RS485 / WiFi/Bluetooth (Optional) |
| Protection Functions | OVP / OCP / OTP / Short-Circuit / Surge | OVP / OCP / OTP / Short-Circuit / Surge | OVP / OCP / OTP / Short-Circuit / Surge |
| Cooling Method | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
| Operating Temperature | -10°C~50°C | -10°C~50°C | -10°C~50°C |
| Dimensions (W×D×H) | 420×300×500mm | 480×350×600mm | 600×400×800mm |
| Net Weight | ~18kg | ~30kg | ~65kg |
| Compliance | CE, ISO 9001, IEC 62116 | CE, ISO 9001, IEC 62116 | CE, ISO 9001, IEC 62116 |
Target Applications
- Residential Solar Systems: Powers homes with clean solar energy, reducing electricity bills and providing backup power during outages.
- Off-Grid Living: Delivers reliable power to remote cabins, tiny homes, and RVs, working with solar panels and batteries for self-sufficient energy.
- Small Businesses & Farms: Powers shops, restaurants, irrigation pumps, and farm machinery in rural areas with limited grid access.
- Telecom & Monitoring: Provides backup power for remote telecom base stations, CCTV cameras, and IoT devices.
- Emergency & Disaster Relief: Delivers portable power for emergency response teams and disaster relief operations.
- Educational & Training: Used in universities and technical schools to teach solar energy and power electronics principles.
Why Choose YIMAI Hybrid Solar Inverter?
YIMAI is a leading manufacturer of solar energy solutions, with years of experience delivering reliable hybrid inverters to global customers. Our hybrid solar inverters are rigorously tested to meet international safety and performance standards (CE, IEC), ensuring exceptional reliability, efficiency, and durability. By choosing YIMAI, you are investing in a cost-effective, eco-friendly solar power solution that maximizes energy independence and reduces your carbon footprint.
After-Sales Service & Support
We offer a 2-year warranty for the inverter and a 5-year warranty for the MPPT charge controller, along with lifetime technical support. Our global service network provides on-site installation, commissioning, and maintenance services, including battery compatibility testing and system optimization. Our technical team is available 24/7 to assist with system configuration, troubleshooting, and custom solution development.
FAQ (Frequently Asked Questions)
Q1: What is a hybrid solar inverter? How does it differ from a standard inverter?
A: A hybrid solar inverter integrates a solar charge controller, battery charger, and grid-tie function into one unit, allowing it to work with both solar panels and batteries, and optionally feed power back to the grid. A standard inverter only converts DC power from batteries to AC power without solar charging or grid-tie capabilities.
Q2: Can this inverter work without a battery?
A: Yes, it can operate in grid-tie mode without a battery, directly feeding solar power to the grid or your loads. However, a battery is required for off-grid operation and backup power during outages.
Q3: What types of batteries are compatible with this inverter?
A: It supports lead-acid (flooded, gel, AGM) and LiFePO4 batteries, with customizable charging/discharging parameters to match different battery chemistries.
Q4: Can I monitor the system remotely?
A: Yes, with the optional WiFi/Bluetooth module, you can monitor and control the inverter via a smartphone app or PC, checking solar input, battery status, and load power from anywhere.
Q5: How efficient is the MPPT charge controller?
A: The MPPT charge controller has a tracking efficiency of up to 99.5%, maximizing solar energy harvest and reducing wasted solar power, especially in low-light conditions.
Q6: Can this inverter be used in both off-grid and grid-tie systems?
A: Yes, it supports both modes. In off-grid mode, it operates independently from the grid using solar and battery power. In grid-tie mode, it feeds excess solar power back to the grid while drawing power from the grid when needed.
Q7: What is the warranty period? What after-sales support is provided?
A: The inverter comes with a 2-year warranty, and the MPPT charge controller comes with a 5-year warranty. We offer lifetime technical support, including on-site installation, maintenance, and emergency repair services worldwide.
Q8: Is the output waveform a pure sine wave? Can it be used for sensitive electronics?
A: Yes, it delivers a pure sine wave output with low THD, making it safe and suitable for sensitive electronics, appliances, and medical devices.
