YIMAI High-Frequency Online UPS 220V 6KVA/10KVA/20KVA/30KVA | Pure Sine Wave Backup Power for Data Center & Computer Room

YIMAI High-Frequency Online UPS 220V 6KVA/10KVA/20KVA/30KVA | Pure Sine Wave Backup Power for Data Center & Computer Room

Protect your mission-critical equipment with the YIMAI High-Frequency Online UPS. Featuring 0ms transfer time, pure sine wave output, and a wide input voltage range (110V~288V AC), this 220V UPS system delivers reliable backup power and voltage stabilization for data centers, computer rooms, servers, network switches, medical devices, and industrial automation equipment. Available in 6KVA, 10KVA,

Ask Us

Information

Product Title

YIMAI High-Frequency Online UPS Uninterruptible Power Supply 220V 6KVA/10KVA/20KVA/30KVA | Pure Sine Wave Voltage Stabilization Backup Power for Data Center, Computer Room & Industrial Critical Loads

Product Overview

The YIMAI High-Frequency Online UPS is a professional, industrial-grade uninterruptible power supply engineered to deliver continuous, clean power to mission-critical equipment in the most demanding environments. Built on advanced double-conversion online technology, this 220V UPS system eliminates power interruptions, voltage fluctuations, and electrical disturbances that can cause data loss, equipment damage, or costly downtime. Available in 6KVA, 10KVA, 20KVA, and 30KVA capacity models, it is the ideal power protection solution for data centers, computer rooms, industrial automation systems, medical facilities, and financial institutions where uninterrupted operation is non-negotiable.

Core Technical Advantages

Zero-Interruption Double-Conversion Technology

Unlike offline or line-interactive UPS systems, the YIMAI online UPS continuously converts AC mains power to DC and back to AC, ensuring a 0ms transfer time between utility power and battery backup. This seamless transition guarantees that sensitive loads such as servers, network switches, and precision instruments never experience even a momentary power loss, eliminating the risk of data corruption or hardware failure during outages.
Pure Sine Wave Output for Sensitive Electronics

The UPS delivers a stable, pure sine wave output with a voltage regulation accuracy of ±1%, effectively filtering out harmonic distortion, voltage sags, surges, and spikes from the input power supply. This clean power output is essential for protecting sensitive electronic equipment, including medical devices, industrial PLCs, and high-end server hardware, which are prone to damage from poor power quality.
High-Efficiency, Energy-Saving Design

Leveraging high-frequency inverter technology, the YIMAI UPS achieves an operating efficiency of up to 95%, significantly reducing energy consumption and operational costs compared to traditional low-frequency UPS models. The compact, modular design also minimizes physical footprint and reduces noise emissions, making it suitable for installation in space-constrained computer rooms and office environments.
Intelligent LCD Monitoring & Remote Management

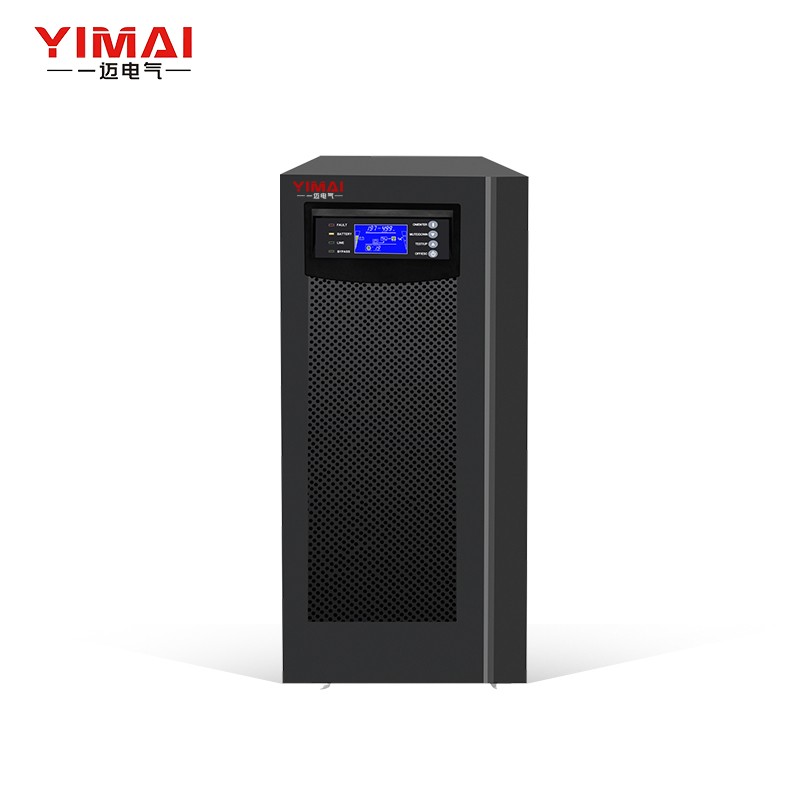

The front panel features a large, backlit LCD display that provides real-time visibility into key operational parameters, including input/output voltage, load percentage, battery charge level, and fault codes. For remote monitoring and management, the system supports multiple communication interfaces (USB, RS232, and SNMP), enabling IT administrators to monitor the UPS status, receive instant alarm notifications, and configure automatic shutdown sequences via network management software.
Wide Input Voltage Range for Grid Stability

Designed to operate in unstable power environments, the UPS accepts a wide input voltage range of 110V~288V AC, allowing it to function reliably in regions with poor grid quality. This wide input range reduces the frequency of battery discharges, extending battery life and lowering maintenance costs.
Comprehensive Multi-Layer Protection

The system is equipped with a full suite of built-in protection mechanisms to safeguard both the UPS and connected loads:
- Overload and short-circuit protection
- Over-voltage and under-voltage protection
- Over-temperature protection
- Battery overcharge and over-discharge protection
- Surge and lightning protection

  These protections ensure the UPS operates safely under all conditions and prevents damage to critical equipment.

Technical Specifications (Typical Values)

Parameter	6KVA Model	10KVA Model	20KVA Model	30KVA Model
Rated Capacity	6KVA / 5.4KW	10KVA / 9KW	20KVA / 18KW	30KVA / 27KW
Input Voltage	110~288V AC, 50/60Hz	110~288V AC, 50/60Hz	110~288V AC, 50/60Hz	110~288V AC, 50/60Hz
Output Voltage	220V AC ±1%, 50/60Hz	220V AC ±1%, 50/60Hz	220V AC ±1%, 50/60Hz	220V AC ±1%, 50/60Hz
Output Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave

Product Title

YIMAI High-Frequency Online UPS Uninterruptible Power Supply 220V 6KVA/10KVA/20KVA/30KVA | Pure Sine Wave Voltage Stabilization Backup Power for Data Center, Computer Room & Industrial Critical Loads

Product Overview

The YIMAI High-Frequency Online UPS is a professional, industrial-grade uninterruptible power supply engineered to deliver continuous, clean power to mission-critical equipment in the most demanding environments. Built on advanced double-conversion online technology, this 220V UPS system eliminates power interruptions, voltage fluctuations, and electrical disturbances that can cause data loss, equipment damage, or costly downtime. Available in 6KVA, 10KVA, 20KVA, and 30KVA capacity models, it is the ideal power protection solution for data centers, computer rooms, industrial automation systems, medical facilities, and financial institutions where uninterrupted operation is non-negotiable.

Core Technical Advantages

Zero-Interruption Double-Conversion Technology

Unlike offline or line-interactive UPS systems, the YIMAI online UPS continuously converts AC mains power to DC and back to AC, ensuring a 0ms transfer time between utility power and battery backup. This seamless transition guarantees that sensitive loads such as servers, network switches, and precision instruments never experience even a momentary power loss, eliminating the risk of data corruption or hardware failure during outages.
Pure Sine Wave Output for Sensitive Electronics

The UPS delivers a stable, pure sine wave output with a voltage regulation accuracy of ±1%, effectively filtering out harmonic distortion, voltage sags, surges, and spikes from the input power supply. This clean power output is essential for protecting sensitive electronic equipment, including medical devices, industrial PLCs, and high-end server hardware, which are prone to damage from poor power quality.
High-Efficiency, Energy-Saving Design

Leveraging high-frequency inverter technology, the YIMAI UPS achieves an operating efficiency of up to 95%, significantly reducing energy consumption and operational costs compared to traditional low-frequency UPS models. The compact, modular design also minimizes physical footprint and reduces noise emissions, making it suitable for installation in space-constrained computer rooms and office environments.
Intelligent LCD Monitoring & Remote Management

The front panel features a large, backlit LCD display that provides real-time visibility into key operational parameters, including input/output voltage, load percentage, battery charge level, and fault codes. For remote monitoring and management, the system supports multiple communication interfaces (USB, RS232, and SNMP), enabling IT administrators to monitor the UPS status, receive instant alarm notifications, and configure automatic shutdown sequences via network management software.
Wide Input Voltage Range for Grid Stability

Designed to operate in unstable power environments, the UPS accepts a wide input voltage range of 110V~288V AC, allowing it to function reliably in regions with poor grid quality. This wide input range reduces the frequency of battery discharges, extending battery life and lowering maintenance costs.
Comprehensive Multi-Layer Protection

The system is equipped with a full suite of built-in protection mechanisms to safeguard both the UPS and connected loads:
- Overload and short-circuit protection
- Over-voltage and under-voltage protection
- Over-temperature protection
- Battery overcharge and over-discharge protection
- Surge and lightning protection

  These protections ensure the UPS operates safely under all conditions and prevents damage to critical equipment.

Technical Specifications (Typical Values)

Parameter	6KVA Model	10KVA Model	20KVA Model	30KVA Model
Rated Capacity	6KVA / 5.4KW	10KVA / 9KW	20KVA / 18KW	30KVA / 27KW
Input Voltage	110~288V AC, 50/60Hz	110~288V AC, 50/60Hz	110~288V AC, 50/60Hz	110~288V AC, 50/60Hz
Output Voltage	220V AC ±1%, 50/60Hz	220V AC ±1%, 50/60Hz	220V AC ±1%, 50/60Hz	220V AC ±1%, 50/60Hz
Output Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
