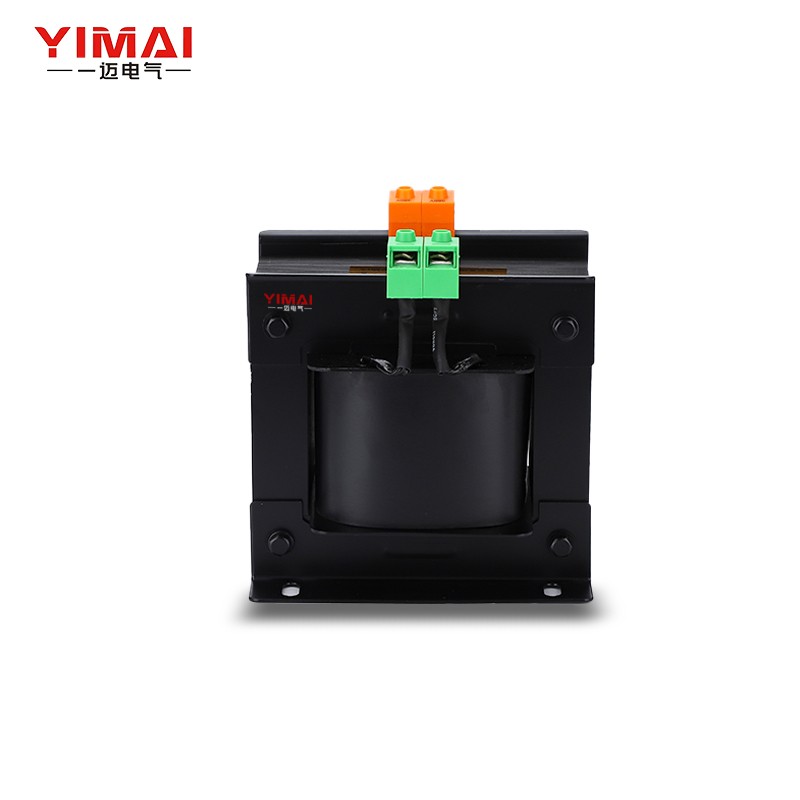

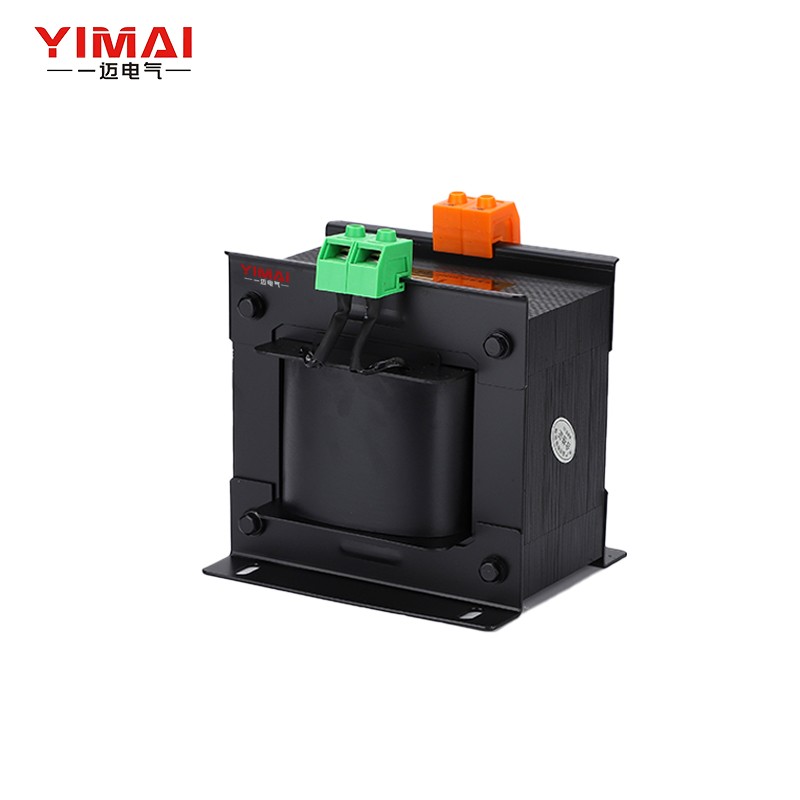

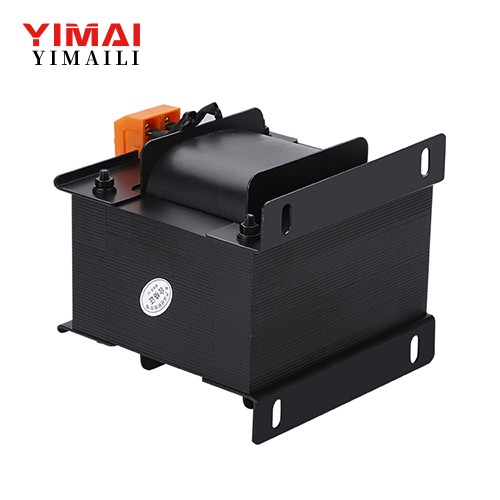

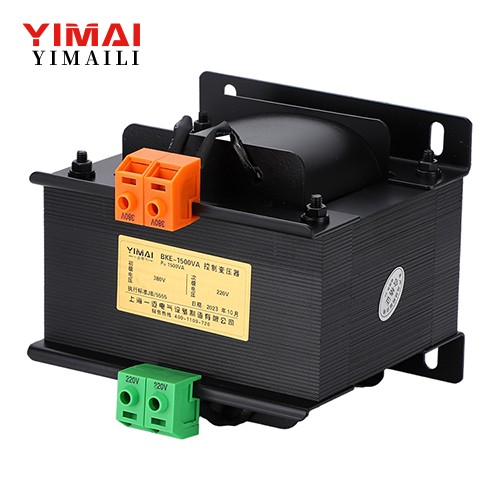

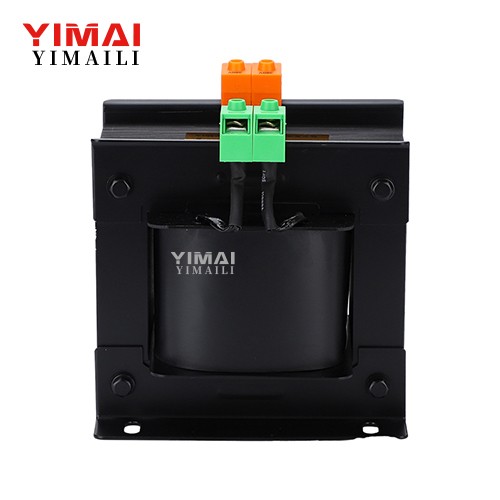

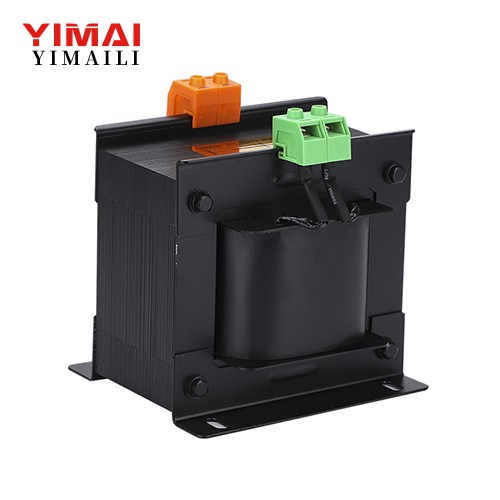

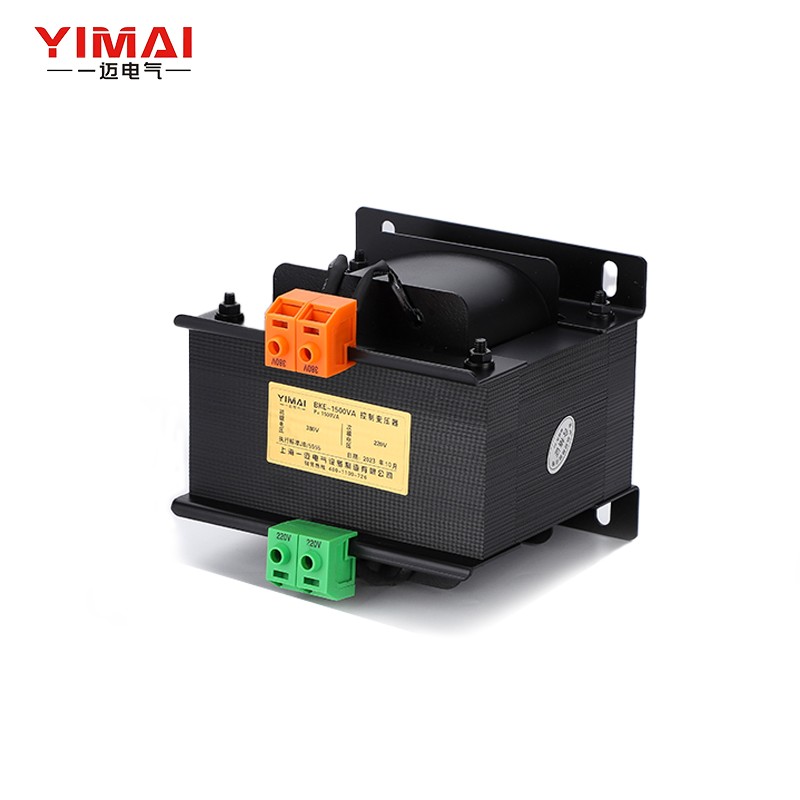

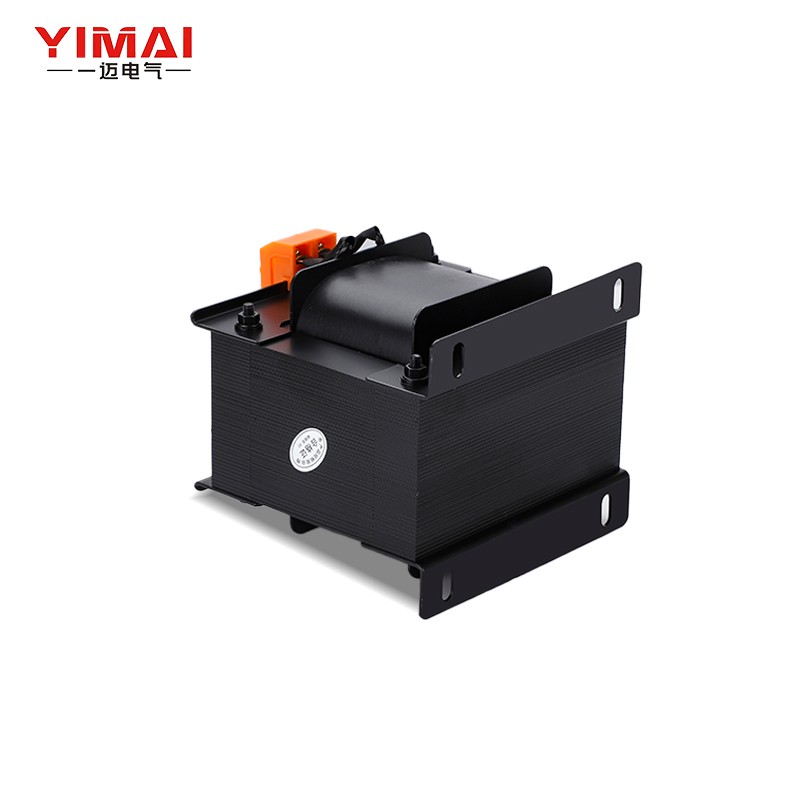

JBK5 40va-2500va Low Voltage Dry Type Machine Tool Control Transformer 440v To 220v
Model Number: JBK5 40va-2500va Input Voltage: 220V, 110V, 240V, Other Product name: Isolation transfomer Type: dry type transformer Certification: ISO9001,CE Frequency: 50/60Hz Rated capacity: 25-5000va Warranty: 1 Years Input Voltage: 440V/415V/380V/360V/220V Output Voltage: 6V/12V/24V/36V/48V Insulation Resistance: ≥50MΩ Efficiency: 0.98 Place of Origin: zhejiang, China Brand Name:
- Information
Product Description
JBK5 40VA-2500VA low voltage dry type machine tool control transformer converts 220V/380V to 6V, 12V, 24V, 36V, 110V, 220V, providing reliable power for CNC engraving machines, machine tools and other industrial equipment.
Product Features
♦ Low energy consumption: High efficiency performance with minimal energy consumption.
♦ Metal bracket: Durable metal bracket and nut to ensure stability.
♦ Easy installation: Clear parameters for easy installation and clear wiring labels.
Key elements to pay attention to when purchasing:
♦Matching capacity: Choose a transformer with sufficient capacity to avoid overheating, especially during startup.
♦Multi-winding transformer: Increase the capacity according to the voltage ratio of the multi-control voltage transformer.
♦Check the specifications: Before installation, make sure the nameplate of the transformer meets your requirements.
Model Meaning
| Model | JBK3 □ |
| JBK | Machine control transformer |
| 3 | Design serial number |
| □ | Rated capacity |
| □ | Tropical Product Code Humid Tropics Dry Tropics |
Technical Parameters
| Model NO. | JBK3 |
| Capacity | 40VA 63VA 100VA 160VA 250VA 300VA 400VA 630VA 800VA …. |
| Frequency | 50Hz/60Hz |
| Efficiency | ≥98% |
| Input Voltage | 220V/380V (customizable voltage) |
| Output Voltage | 6V/12V/24V/36V/110V/220V (customizable voltage) |
Specifications
| MODEL | Overall size(mm) | Installation size | Aperture(K*J) | |||
| B | D | E | A | C | ||
| JBK3-40 | 78 | 72 | 90 | 56±0.5 | 51±3 | 4.8*9 |
| JBK3-63 | 78 | 75 | 96 | 56±0.5 | 51±2 | 4.8*9 |
| JBK3-100 | 85 | 92 | 105 | 64±0.5 | 67±0.5 | 4.8*9 |
| JBK3-160 | 96 | 100 | 104 | 84±0.5 | 74±2 | 5.8*11 |
| JBK3-250 | 96 | 100 | 122 | 84±0.5 | 88±2 | 5.8*11 |
| JBK3-300 | 96 | 110 | 140 | 84±0.5 | 96±2 | 5.8*11 |
| JBK3-400 | 120 | 128 | 142 | 90±0.5 | 90±2 | 7*13 |
| JBK3-630 | 150 | 190 | 142 | 122±0.5 | 86±2 | 7*13 |
| JBK3-800 | 150 | 125 | 155 | 122±0.5 | 100±2 | 7*13 |
| JBK3-1000 | 155 | 225 | 153 | 127±2 | 152±2 | 7*13 vertical |
| JBK3-1600 | 180 | 138 | 155 | 140±2 | 176±2 | 7*13 vertical |
| JBK3-2500 | 205 | 160 | 160 | 173±2 | 200±2 | 7*13 vertical |
| JBK5-40 、63 | 78 | 72 | 90 | 56±0.15 | 46±0.125 | 4.6 |
| JBK5-100 | 85 | 75 | 96 | 64±0.15 | 62±0.15 | 4.6 |
| JBK5-160 | 96 | 92 | 105 | 84±0.175 | 73.5±0.15 | 5.5 |
| JBK5-250 | 96 | 100 | 104 | 84±0.175 | 85±0.175 | 5.8 |
| JBK5-400 | 120 | 100 | 122 | 90±0.175 | 85±0.175 | 5.8 |
| JBK5-630 | 150 | 110 | 140 | 122±0.2 | 90±0.175 | 7 |
| JBK5-800 | 150 | 128 | 142 | 122±0.2 | 105±0.2 | 7 |
| JBK5-1000 | 150 | 190 | 142 | 126±0.2 | 155±0.2 | 7 |
| JBK5-1000 | 168 | 125 | 155 | 105±0.2 | 138±0.2 | 9 |
| JBK5-1600 | 170 | 225 | 153 | 140±0.2 | 176±0.2 | 7 |
| JBK5-1600 | 168 | 138 | 155 | 116±0.2 | 138±0.2 | 9 |
| JBK5-2500 | 194 | 160 | 160 | 172±0.2 | 195±0.23 | 7 |
