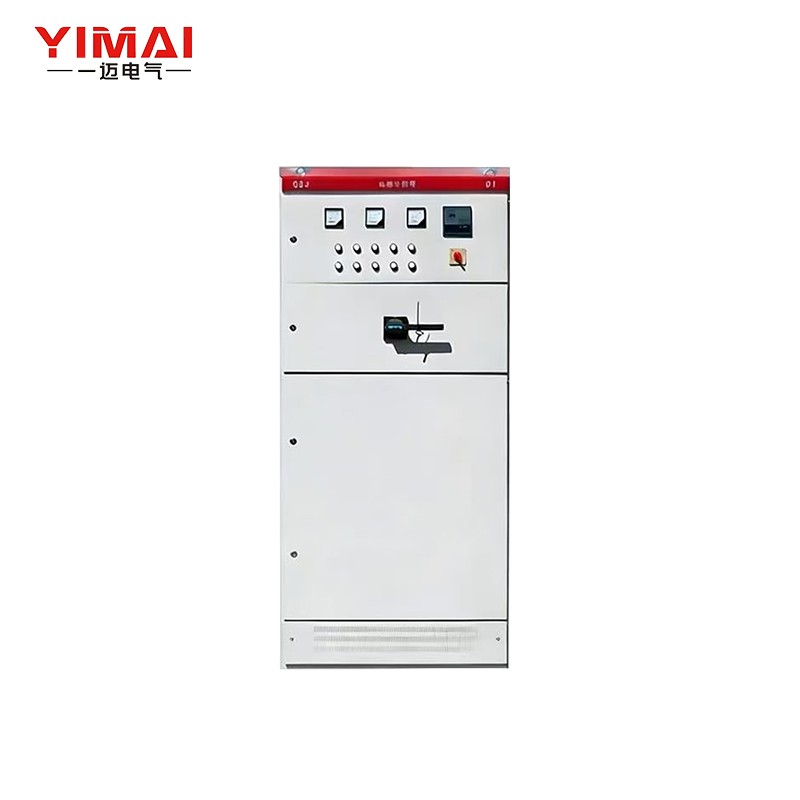

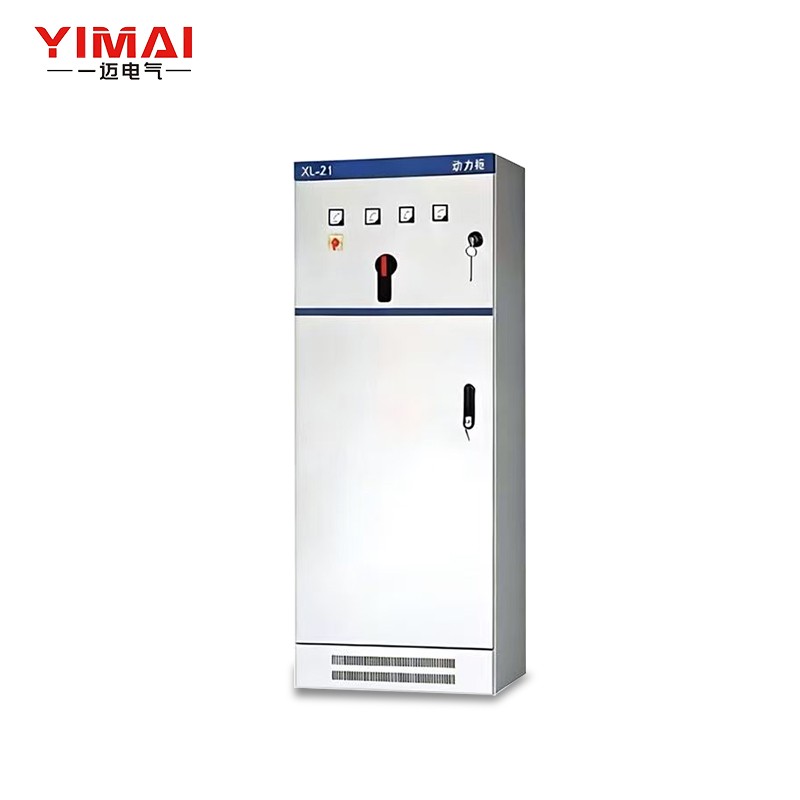

YIMAI Low-Voltage Switchgear Cabinet | GCS/GCK/GGD Type Drawer-Type Power Distribution Cabinet
The YIMAI Low-Voltage Switchgear Cabinet is a modular, drawer-type power distribution and control solution engineered for industrial and commercial power systems. Sold by Shanghai YIMAI Electric (一迈电气), this cabinet features a robust metal enclosure, compartmentalized design, and high-quality components, providing reliable power distribution, protection, and control for low-voltage electrical syst
- Information
Product Overview
The YIMAI Low-Voltage Switchgear Cabinet is a professional power distribution system designed for safe and efficient management of low-voltage electrical networks. Featuring a drawer-type modular structure, this cabinet integrates circuit breakers, contactors, relays, and capacitor banks into a compartmentalized enclosure, enabling power distribution, motor control, and reactive power compensation. With a rated voltage of up to 400V AC and currents from 630A to 3150A, it is the ideal solution for industrial plants, commercial buildings, and power distribution substations.
Core Technical Advantages
-
Modular Drawer-Type Design
- Adopts a modular drawer structure, allowing for independent installation and removal of functional units (circuit breakers, contactors, relays) without interrupting power supply to other compartments.
- Each drawer is equipped with mechanical interlocks, preventing incorrect operation and ensuring personnel safety during maintenance.
- Flexible configuration allows for custom combinations of distribution, control, and compensation functions to meet specific project requirements.
-
Compartmentalized Safety Structure
- The cabinet is divided into independent compartments: busbar chamber, functional unit chamber, and cable chamber, preventing fault propagation between different units.
- The busbar is made of high-conductivity copper, with a compact design and excellent heat dissipation, ensuring stable operation under full load.
- The enclosure is made of high-strength steel with IP54 protection rating, resistant to dust, moisture, and mechanical impacts.
-
High-Quality Components & Reliable Protection
- Equipped with high-performance circuit breakers (MCCB/ACB), contactors, and relays, providing reliable protection against short-circuits, overloads, and earth faults.

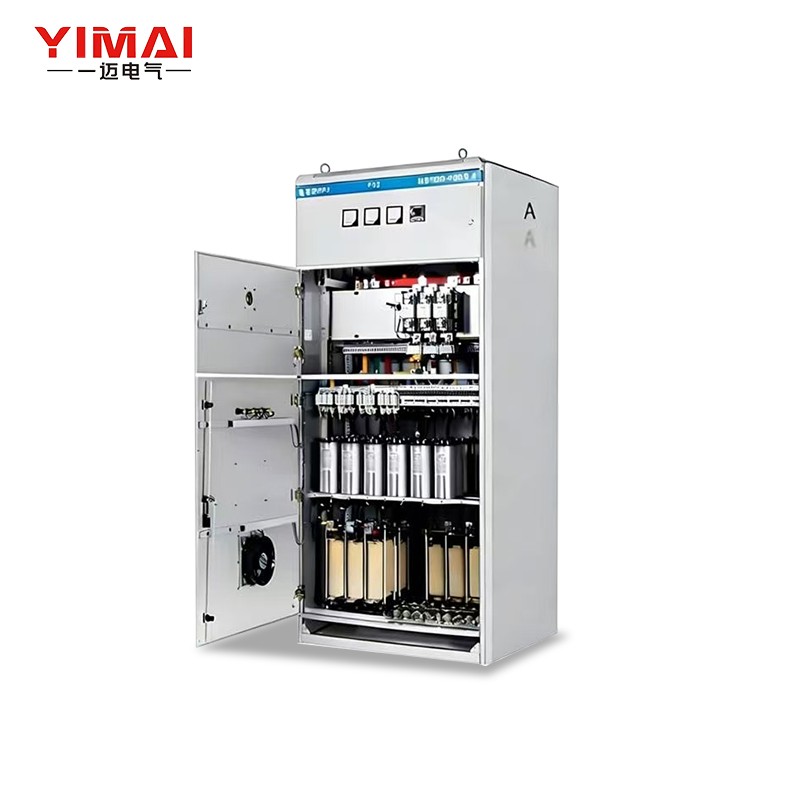

- Built-in capacitor banks for reactive power compensation, improving power factor and reducing energy loss.
- Supports remote monitoring and control via RS485/Modbus communication, enabling integration with SCADA systems.
-
Easy Installation & Maintenance
- The front door is hinged and lockable, providing easy access to internal components for installation and maintenance.
- Cable entry holes at the top and bottom allow for convenient wiring and cable management.
- Modular design allows for quick replacement of faulty components, reducing downtime and operational costs.
Technical Specifications (Typical Values)
| Parameter | GCS-630A Model | GCS-1600A Model | GCS-3150A Model |
|---|---|---|---|
| Model | YIMAI-GCS-630A | YIMAI-GCS-1600A | YIMAI-GCS-3150A |
| Type | Drawer-Type Low-Voltage Switchgear | Drawer-Type Low-Voltage Switchgear | Drawer-Type Low-Voltage Switchgear |
| Rated Voltage | 400V AC (Three-Phase) | 400V AC (Three-Phase) | 400V AC (Three-Phase) |
| Rated Current | 630A | 1600A | 3150A |
| Short-Circuit Withstand Current | 25kA (1s) | 40kA (1s) | 50kA (1s) |
| Busbar Material | Copper (T2) | Copper (T2) | Copper (T2) |
| Protection Degree | IP54 (Indoor Industrial Use) | IP54 (Indoor Industrial Use) | IP54 (Indoor Industrial Use) |
| Number of Drawer Units | 12 | 18 | 24 |
| Cooling Method | Natural Convection / Forced Air Cooling (Optional) | Natural Convection / Forced Air Cooling (Optional) | Natural Convection / Forced Air Cooling (Optional) |
| Dimensions (W×D×H) | 800×800×2200mm | 1000×1000×2200mm | 1200×1200×2200mm |
| Net Weight | ~300kg | ~500kg | ~800kg |
| Operating Environment | -10°C~40°C, 20~90%RH (Non-Condensing) | -10°C~40°C, 20~90%RH (Non-Condensing) | -10°C~40°C, 20~90%RH (Non-Condensing) |
| Compliance | GB/T 14048, IEC 60947, CE, ISO 9001 | GB/T 14048, IEC 60947, CE, ISO 9001 | GB/T 14048, IEC 60947, CE, ISO 9001 |
Target Applications
- Industrial Manufacturing: Power distribution and motor control for factories, production lines, and machinery.
- Commercial Buildings: Power management for shopping malls, office towers, and hotels, including lighting, HVAC, and elevator systems.
- Power Substations: Low-voltage power distribution and reactive power compensation for power substations.
- Infrastructure: Power supply for water treatment plants, transportation systems, and public facilities.
- Data Centers: Power distribution and protection for server rooms and IT equipment.
- Mining & Construction: Power management for mining equipment, construction machinery, and temporary power systems.
Why Choose YIMAI Low-Voltage Switchgear (Shanghai YIMAI)?
YIMAI (上海一迈电气) is a leading manufacturer of power distribution equipment, with decades of experience delivering reliable switchgear solutions to global industrial and infrastructure customers. Our drawer-type low-voltage switchgear is rigorously tested to meet national and international standards (GB/T 14048, IEC 60947, CE, ISO), ensuring exceptional safety, reliability, and performance. Purchasing directly from Shanghai YIMAI on Taobao guarantees genuine products, local fast shipping, and professional after-sales support for large-scale projects.
After-Sales Service & Support
- 3-year warranty for all low-voltage switchgear products.
- Lifetime technical support via Shanghai YIMAI Taobao store, including on-site installation, commissioning, and maintenance.
- Custom solution design for specific voltage, current, and functional requirements.
- Fast response to emergency repair requests, minimizing downtime for critical operations.
FAQ (Frequently Asked Questions)
Q1: What is the difference between GCS, GCK, and GGD type switchgear?
A: GCS and GCK are drawer-type low-voltage switchgear, with GCS featuring a more compact design and higher integration, while GGD is a fixed-type switchgear. This model is a drawer-type GCS switchgear, ideal for applications requiring flexible configuration and easy maintenance.
Q2: Can this switchgear handle a 630A load continuously?
A: Yes, the GCS-630A model is rated for 630A continuous operation, with a short-circuit withstand current of 25kA (1s), ensuring stable operation under normal and fault conditions.
Q3: What is the maximum short-circuit current it can withstand?
A: The 630A model can withstand 25kA (1s), the 1600A model can withstand 40kA (1s), and the 3150A model can withstand 50kA (1s), providing reliable protection against short-circuit faults.
Q4: Is the switchgear suitable for outdoor installation?
A: The standard enclosure is IP54 (indoor use). For outdoor installation, we offer custom IP65 enclosures with weatherproofing and temperature control.
Q5: Does it support reactive power compensation?
A: Yes, it can be equipped with built-in capacitor banks for reactive power compensation, improving power factor and reducing energy loss.
Q6: Can I customize the number of drawer units?
A: Yes, the modular design allows for custom configuration of drawer units to meet specific functional requirements (distribution, control, compensation).
Q7: What is the warranty period?
A: All YIMAI low-voltage switchgear products come with a 3-year warranty, and Shanghai YIMAI provides lifetime technical support, including on-site maintenance and emergency repair services.
Q8: Does it support remote monitoring?
A: Yes, it supports RS485/Modbus communication, enabling remote monitoring and control via SCADA or building management systems (BMS).
