YIMAI European-Style Box Substation (欧式箱变) | 10kV/20kV Prefabricated Compact Transformer Station with Decorative Wood Grain Panel
The YIMAI European-Style Box Substation is a premium, aesthetically designed prefabricated power distribution solution engineered for urban landscapes, residential communities, and commercial districts. Sold by Shanghai YIMAI Electric (一迈电气), this "box-type substation" features a unique decorative exterior that blends harmoniously with surrounding environments, integrating a high-efficiency transf
- Information
Product Overview

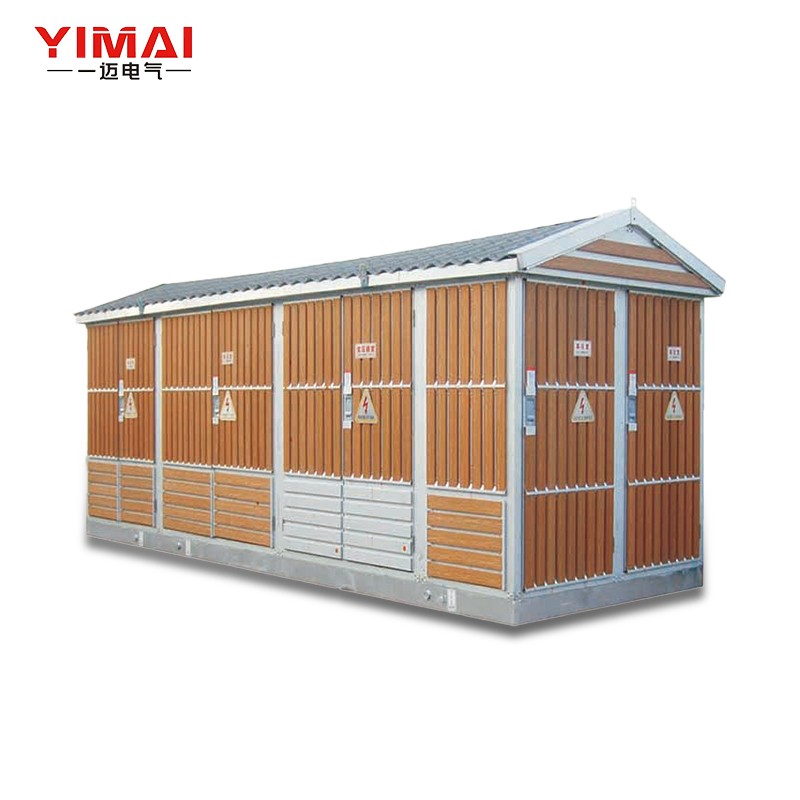

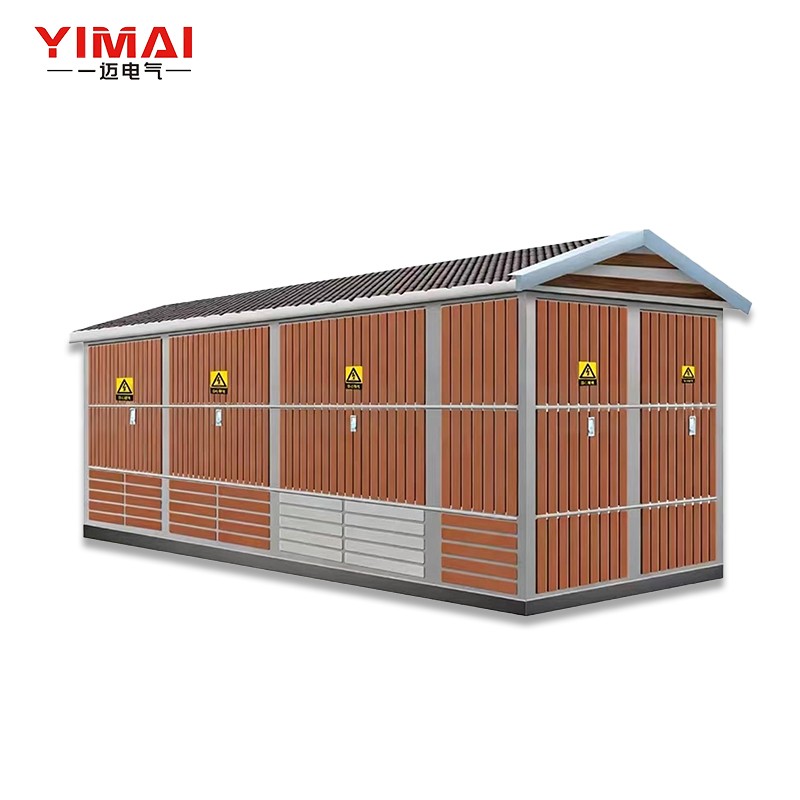

The YIMAI European-Style Box Substation (also known as a "箱变") is a sophisticated prefabricated power distribution system designed specifically for urban deployment, residential areas, and scenic landscapes. Unlike standard box substations, this model features a customizable wood grain decorative panel and a classic gabled roof design, allowing it to integrate seamlessly with urban architecture without appearing industrial. It integrates a high-voltage switchgear, power transformer, and low-voltage distribution cabinet within a single enclosure, providing a complete, turnkey power distribution solution.
Core Technical Advantages
-
Aesthetic European-Style Design
- Unique Decorative Surface: Adopts high-quality metal panels with a wood grain finish, closely mimicking natural wood texture while offering superior corrosion resistance.
- Classic Gabled Roof: The sloped roof design not only enhances aesthetics but also provides excellent rain drainage, preventing water accumulation and extending the service life of the enclosure.
- Modular Assembly Structure: The cabinet is constructed using standardized modular components, ensuring high structural integrity and ease of transportation/installation.
-
High-Efficiency Transformer with Low Loss
- Equipped with a high-efficiency amorphous alloy transformer as standard, which reduces no-load loss by up to 70% compared to traditional silicon steel core transformers.
- Options for dry-type transformers are available for environments requiring high fire safety, making it suitable for indoor or semi-outdoor urban settings.
- Designed with low noise operation (<55dB), minimizing environmental impact in residential and commercial zones.
-
Smart Integrated Electrical System
- The high-voltage side is equipped with a ring main unit (RMU) or load switch circuit breaker, supporting flexible power supply modes (radial or ring network).
- The low-voltage side integrates comprehensive compensation devices and microcomputer protection relays, providing functions such as reactive power compensation, harmonic management, and remote signal transmission.
- All internal components are installed on standardized rails, facilitating rapid maintenance and component replacement.
-
Advanced Environmental Adaptability
- High Weather Resistance: The enclosure is treated with a multi-layer anti-corrosion coating, resistant to UV rays, acid rain, and salt spray (coastal areas).
- Dual Cooling System: Natural ventilation louvers combined with thermal management systems ensure stable operation of internal transformers even in high-temperature environments.
- Independent Cable Chamber: Facilitates underground cable connection, reducing the risk of external damage and improving wiring safety.
Technical Specifications (Typical Values)
| Parameter | 10kV-630kVA Model | 35kV-1250kVA Model |
|---|---|---|
| Model | YIMAI-EBX-630kVA | YIMAI-EBX-1250kVA |
| Type | European-Style Box-Type Substation | European-Style Box-Type Substation |
| Rated Voltage (High) | 10kV AC (Three-Phase) | 35kV AC (Three-Phase) |
| Rated Voltage (Low) | 400V/230V AC (Three-Phase) | 400V/230V AC (Three-Phase) |
| Transformer Capacity | 630kVA | 1250kVA |
| Transformer Core | Amorphous Alloy / Silicon Steel (Optional) | Amorphous Alloy / Silicon Steel (Optional) |
| High-Voltage Equipment | Load Switch / Vacuum Circuit Breaker / RMU | Load Switch / Vacuum Circuit Breaker / RMU |
| Protection Grade | IP54/IP55 (Outdoor Use) | IP54/IP55 (Outdoor Use) |
| Operating Temperature | -30°C ~ +50°C | -30°C ~ +50°C |
| Dimensions (W×D×H) | 6500×2200×2800mm | 8500×2800×3200mm |
| Net Weight | ~3500kg | ~6500kg |
| Compliance | GB/T 17467, IEC 60076, CE, ISO 9001 | GB/T 17467, IEC 60076, CE, ISO 9001 |
Target Applications
- Urban Residential Communities: Safe and aesthetic power supply for new residential districts, ensuring low noise and high reliability.
- Commercial Complexes & Malls: Power distribution for shopping centers, hotels, and entertainment venues, where aesthetics and power quality are critical.
- Scenic Tourism Areas: Power supply for resorts, parks, and highways, with a design that complements the natural landscape.
- University Campuses & Hospitals: Reliable power supply for educational institutions and medical facilities requiring high stability.
- Urban Rail & Infrastructure: Power distribution for subway stations, light rail, and public transportation facilities.
Why Choose YIMAI European-Style Box Substation (上海一迈电气)?
YIMAI (上海一迈电气) specializes in providing customized power distribution solutions for urban environments. This European-style box substation stands out from conventional products with its industry-leading decorative design and energy-saving amorphous alloy transformer core. Purchasing directly from Shanghai YIMAI on Taobao ensures you receive genuine industrial-grade equipment, professional design consultation, and comprehensive after-sales service tailored to urban power projects.
After-Sales Service & Support
- 3-year warranty for the entire cabinet structure and main transformer.
- Lifetime technical support, including free 3D design rendering of the cabinet exterior to match your project's architectural style.
- On-site installation and commissioning services for large-scale projects.
FAQ (Frequently Asked Questions)
Q1: What is the difference between a European-style box substation and a common American-style box substation?
A: The European-style box substation features a compact vertical structure, a decorative exterior, and is typically used for urban and residential areas. The American-style box substation (YB) usually has a horizontal layout and is more commonly used in rural or industrial areas. This model is the European style, designed for urban aesthetics.
Q2: Can the exterior color and panel design be customized?
A: Yes, we offer customization services for the exterior panel material, color, and even add logos or brand information, ensuring the cabinet matches your specific project's environmental design.
Q3: Does this box substation require a separate machine room?
A: No, it is a fully integrated prefabricated substation. All components (transformer, switchgear, distribution) are enclosed in a single cabinet, requiring no additional building construction.
Q4: What is the noise level of this box substation?
A: The standard noise level is less than 55dB at 1 meter distance. For extremely noise-sensitive areas, we offer optional silencing systems to reduce it further.
Q5: Can it be used in coastal areas with high salinity?
A: Yes, the enclosure is coated with a special anti-corrosion and anti-salt spray layer, making it suitable for long-term operation in coastal or humid environments.
Q6: What is the service life of the decorative wood grain panel?
A: The wood grain panel is made of high-quality cold-rolled steel with a multi-layer outdoor paint process, ensuring it can remain durable and fade-free for more than 15 years in outdoor environments.
Q7: What is the warranty period?
A: All YIMAI box-type substation products come with a 3-year warranty for the cabinet structure and main components, and Shanghai YIMAI provides lifetime technical support.
