YIMAI SVC-1500VA Portable Single-Phase Automatic Voltage Regulator | 1.5kVA Servo-Motor Voltage Stabilizer with Universal Outlets for Home & Travel
The YIMAI SVC-1500VA Portable Single-Phase Automatic Voltage Regulator is a compact, travel-friendly power stabilization solution designed for home and small business use. Featuring high-precision servo-motor control, a wide input voltage range, and multiple universal output sockets, this 1.5kVA stabilizer delivers stable 220V AC output, protecting sensitive electronics, home appliances, and trave
- Information
Product Overview
The YIMAI SVC-1500VA Single-Phase Automatic Voltage Regulator (AVR) is a portable, high-performance power stabilization solution engineered for low-power loads up to 1500VA. Utilizing advanced servo-motor control technology, this stabilizer automatically adjusts input voltage fluctuations (typically 140V~260V AC) to a precise 220V±1% output, protecting sensitive home appliances, office equipment, and travel electronics from damage caused by over-voltage, under-voltage, and power surges. With a built-in handle and multiple universal output sockets, it is the ideal choice for homes, small offices, travel, and light commercial use.
Core Technical Advantages
-
High-Precision Servo-Motor ControlThe voltage stabilizer employs a high-speed servo motor to drive the voltage regulator, ensuring a fast response time (<1 second) and precise output voltage regulation (±1%), effectively eliminating voltage fluctuations and providing stable power to connected loads.
-
Wide Input Voltage RangeIt accepts a wide input voltage range (typically 140V~260V AC, single-phase), making it suitable for areas with unstable power grids, where voltage often drops below 180V or spikes above 250V. This range ensures continuous operation even under moderate power conditions.
-

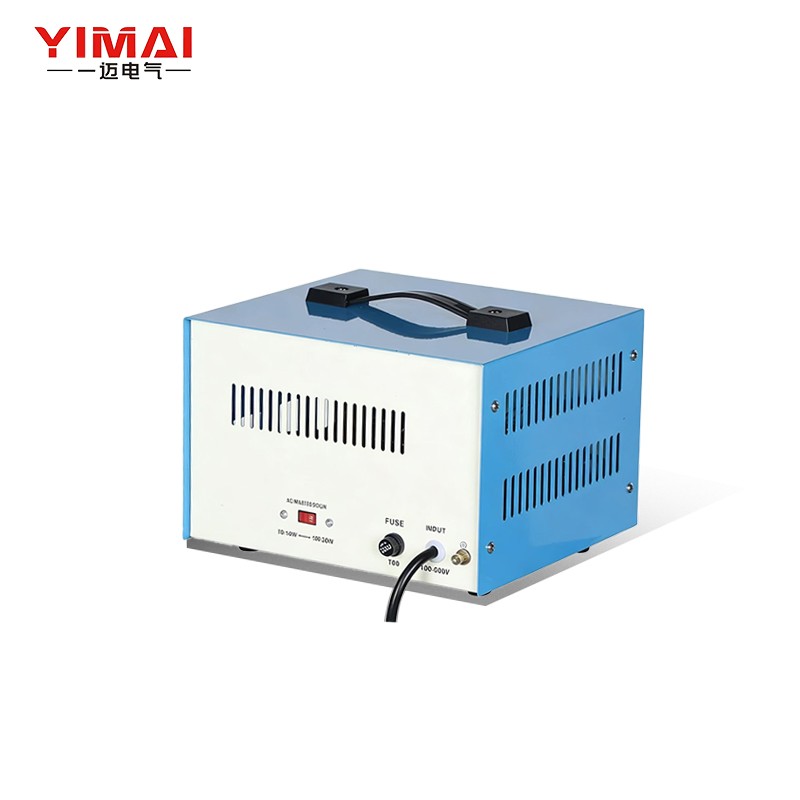

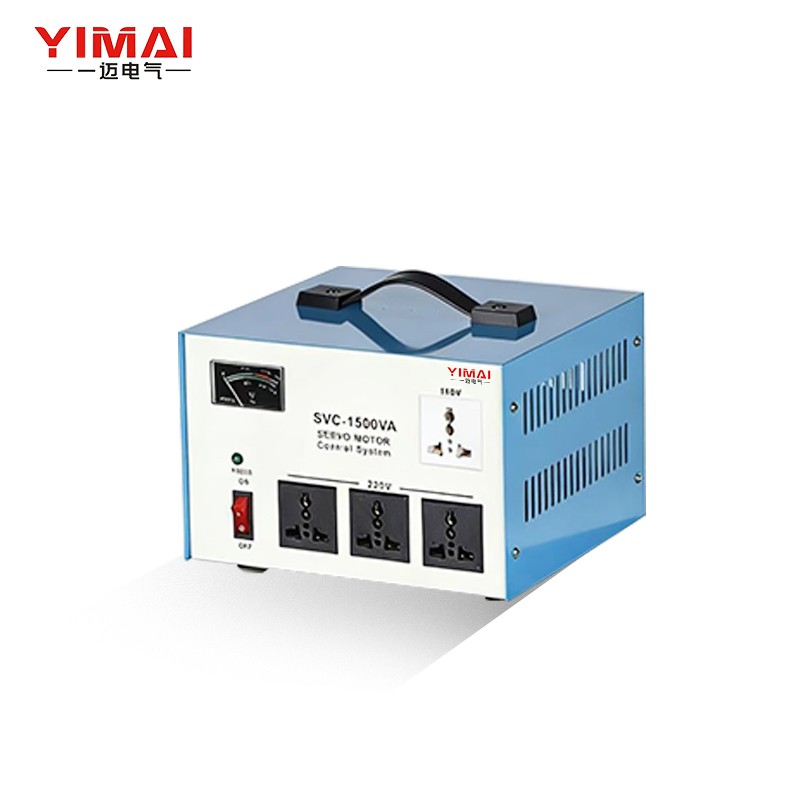

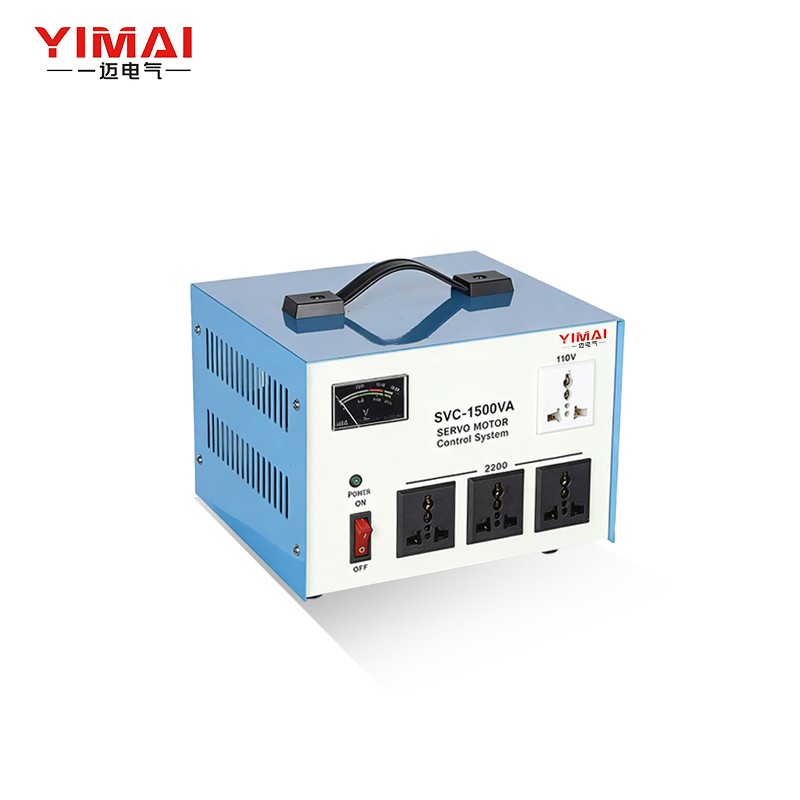

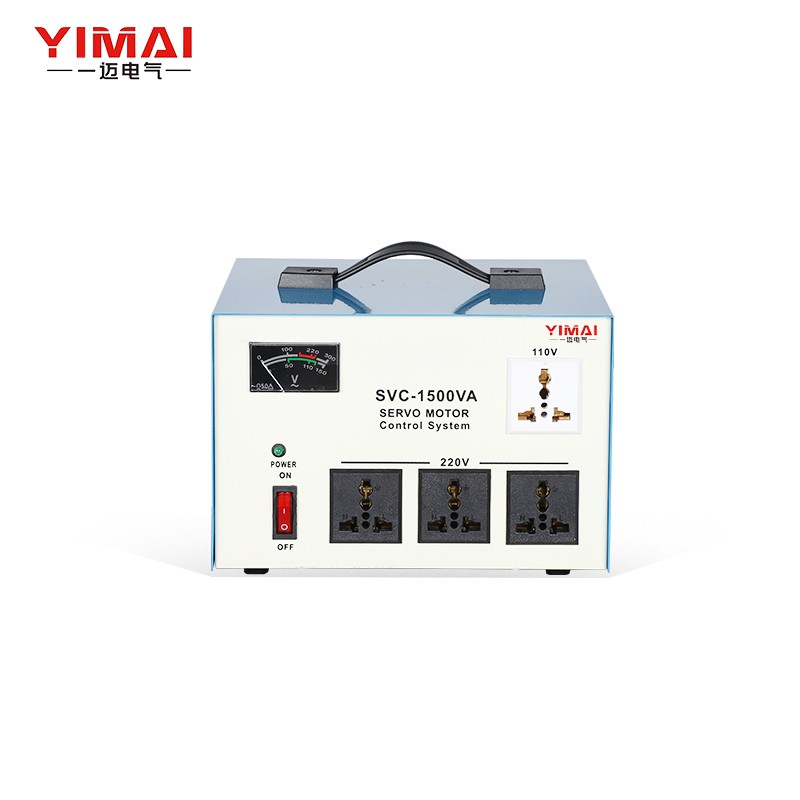

Portable & User-Friendly Design
- Built-in top handle for easy portability, ideal for travel, camping, and moving between rooms.
- Equipped with 4 universal output sockets (compatible with US, EU, UK, AU plugs) and a dedicated 110V/220V selectable socket, allowing simultaneous connection of multiple devices without additional adapters.
- Analog meter displays real-time output voltage, with a power indicator light for clear status monitoring.
-
Comprehensive Protection MechanismsThe system is equipped with a full suite of built-in protections:
- Over-voltage protection (OVP): Automatically cuts off power when output voltage exceeds safe levels.
- Under-voltage protection (UVP): Disconnects the load when input voltage drops below the minimum threshold.
- Over-load protection (OLP): Shuts down to prevent damage when the load exceeds the 1500VA rating.
- Short-circuit protection: Safeguards against short circuits in the connected equipment.
- Surge protection: Filters out high-voltage spikes caused by lightning or grid switching.
-
Compact & Durable Design
- Uses high-quality copper coils and magnetic cores, ensuring low energy loss and high efficiency (>90%).
- The compact metal enclosure with a blue top cover provides excellent heat dissipation and mechanical protection, extending the service life to 10+ years.
- The front-panel power switch allows for easy on/off control.
Technical Specifications (Typical Values)
| Parameter | SVC-1500VA Model |
|---|---|
| Model | YIMAI-SVC-1500VA |
| Type | Single-Phase AC Automatic Voltage Regulator |
| Rated Capacity | 1500VA / 1200W (Power Factor 0.8) |
| Input Voltage | 140V~260V AC (Single-Phase) |
| Output Voltage | 220V AC ±1% (Single-Phase) + 110V/220V Selectable Socket |
| Frequency | 50/60Hz |
| Regulation Accuracy | ±1% |
| Response Time | <1 Second |
| Efficiency | >90% |
| Display | Analog Meter (Output Voltage) |
| Indicator Light | Power (Green) |
| Output Sockets | 4x Universal Sockets + 1x 110V/220V Selectable Socket |
| Protection Functions | OVP / UVP / OLP / Short-Circuit / Surge |
| Cooling Method | Natural Convection |
| Noise Level | <55dB |
| Enclosure Material | Metal (Blue Top Cover) |
| Mounting | Desktop / Portable |
| Dimensions (W×D×H) | Approx. 280×180×160mm |
| Net Weight | Approx. 14kg |
| Operating Environment | 0~40°C, 20~80%RH (Non-Condensing) |
| Compliance | CE, ISO 9001 |
Target Applications
- Home Appliances: Protects refrigerators, air conditioners, washing machines, TVs, computers, and kitchen appliances from voltage damage.
- Travel & Relocation: Powers laptops, phone chargers, hair dryers, and small appliances when traveling between 110V and 220V regions.
- Office Equipment: Safeguards printers, scanners, routers, and small servers in small offices.
- Small Business Use: Powers POS systems, cash registers, and lighting systems in shops and restaurants.
- Outdoor & Camping: Provides portable power for camping equipment, lighting, and small appliances in off-grid locations.
- Electronic Devices: Protects sensitive electronics such as gaming consoles, audio equipment, and medical devices.
Why Choose YIMAI SVC-1500VA Voltage Regulator?
YIMAI (Shanghai YIMAI Electric) is a trusted manufacturer of power protection solutions, with years of experience delivering high-quality voltage stabilizers to global customers. Sold through trusted channels like Beijidun (北极盾) and official YIMAI stores on Taobao, our SVC series regulators are rigorously tested to meet international standards (CE, ISO), ensuring exceptional reliability, performance, and durability. The portable design, universal sockets, and affordable price make it the ideal choice for home and travel users, providing peace of mind in unstable power environments.
After-Sales Service & Support
We offer a 2-year warranty and lifetime technical support for all SVC series voltage regulators. Purchases from Beijidun (北极盾) and Shanghai YIMAI Taobao stores include local after-sales service, with fast shipping and easy returns. Our customer service team is available to assist with installation, troubleshooting, and maintenance, ensuring maximum uptime for your equipment.
FAQ (Frequently Asked Questions)
Q1: What is the maximum load this stabilizer can handle?
A: The SVC-1500VA model has a rated capacity of 1500VA, with a typical power factor of 0.8, so the maximum continuous load is approximately 1200W. It is recommended to keep the load below 80% of the rated capacity for optimal performance and longevity.
Q2: What is the input voltage range? Can it work in areas with low voltage?
A: The standard input range is 140V~260V AC, which can handle voltage drops as low as 140V, making it suitable for areas with moderate power instability. For areas with extremely low voltage, we offer custom models with a wider input range (90V~260V AC).
Q3: Is the output voltage always 220V? Does it have a 110V option?
A: The main output is fixed at 220V AC ±1%, and there is a dedicated selectable socket that can switch between 110V and 220V, making it ideal for powering 110V devices from a 220V grid.
Q4: Does this stabilizer protect against power surges and lightning?
A: Yes, it includes built-in surge protection to filter out high-voltage spikes caused by lightning or grid switching, protecting your equipment from damage.
Q5: How noisy is the stabilizer during operation?
A: The noise level is <55dB, which is quieter than a typical conversation, making it suitable for home and office environments.
Q6: Can I use this stabilizer for my air conditioner?
A: It depends on the power consumption of your air conditioner. A 1.5kVA stabilizer can handle small window-type air conditioners (up to 1HP), but larger split-type air conditioners may require a higher capacity model.
Q7: Where can I buy this product?
A: You can purchase the YIMAI SVC-1500VA voltage regulator from trusted Taobao stores like Beijidun (北极盾) and the official Shanghai YIMAI Electric store, with local shipping and after-sales support.
Q8: What is the warranty period? What after-sales support is provided?
A: All SVC series voltage regulators come with a 2-year warranty, and we offer lifetime technical support, including troubleshooting and repair services. Purchases from Beijidun (北极盾) and Shanghai YIMAI Taobao stores include local after-sales service.
