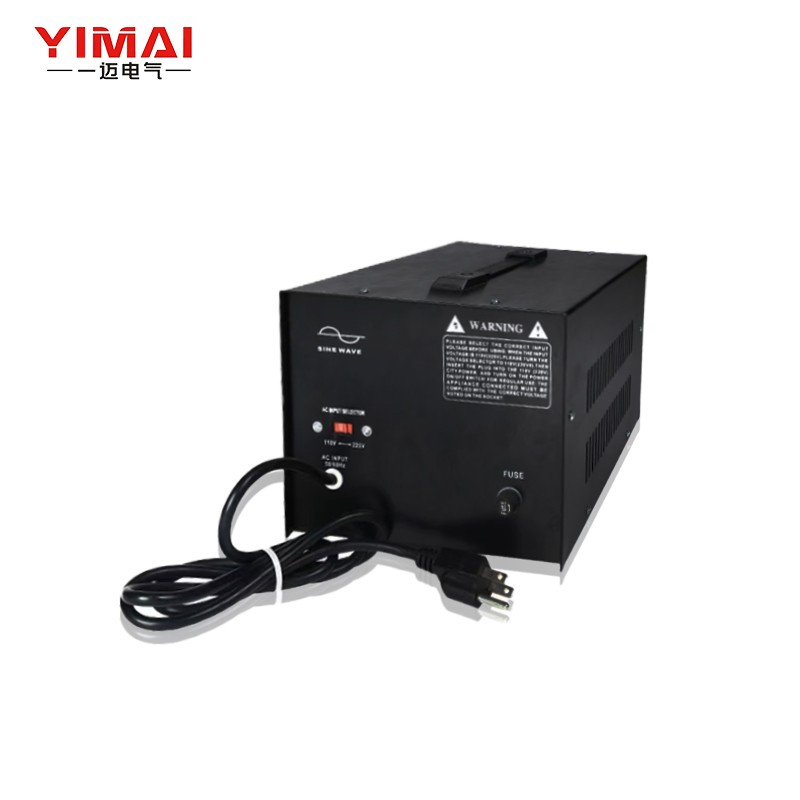

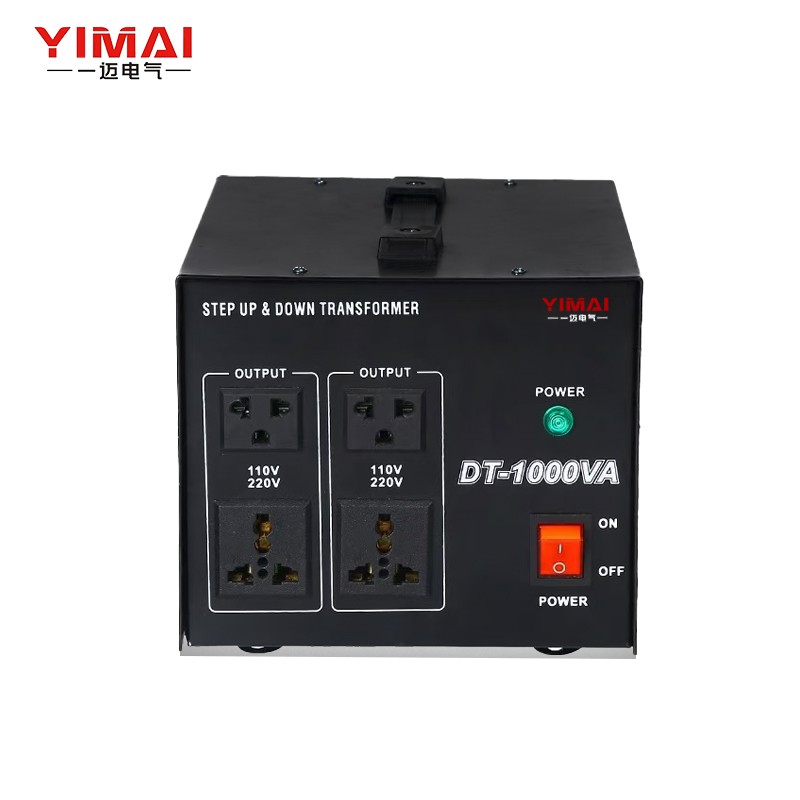

YIMAI DT Series Step Up & Down Transformer | 500VA~5000VA 110V/220V Voltage Converter for Home & Travel Use
The YIMAI DT Series Step Up & Down Transformer is a compact, reliable voltage converter designed to convert voltage between 110V/120V and 220V/240V. Available in 500VA~5000VA capacities, it features built-in circuit protection and universal output sockets, making it ideal for powering appliances, electronics, and tools across different voltage regions.
- Information
Product Overview
The YIMAI DT Series Step Up & Down Transformer is a portable voltage conversion solution engineered to safely convert AC voltage between 110V/120V (North American standard) and 220V/240V (European/Asian standard). This transformer allows users to operate electrical devices from different voltage regions without damage, supporting both step-up (110V → 220V) and step-down (220V → 110V) operation. Available in capacities from 500VA to 5000VA, it is the ideal choice for travel, international relocation, and powering global appliances.
Core Technical Advantages
Dual Voltage ConversionSupports both step-up (110V/120V → 220V/240V) and step-down (220V/240V → 110V/120V) operation, enabling seamless use of devices across different voltage regions.
High-Quality Copper Coil ConstructionUses high-purity copper coils and premium silicon steel cores, ensuring low energy loss, high efficiency (>90%), and stable voltage output, while extending the product lifespan to 10+ years.
Comprehensive Safety Protection
Built-in thermal overload protection and circuit breaker to prevent overheating, short-circuits, and overloads, safeguarding both the transformer and connected devices.
Isolated design eliminates ground loop issues and ensures user safety during operation.
Flame-retardant plastic/metal enclosure provides additional fire safety.
Universal Output SocketsEquipped with universal output sockets compatible with most plug types (US, EU, UK, AU), eliminating the need for additional plug adapters and simplifying device connection.
Portable & Compact DesignThe compact, lightweight design with a top handle allows for easy portability and storage, making it ideal for travel, camping, and small-space installations.
Technical Specifications (Typical Values)
表格
Parameter DT-1000VA Model DT-3000VA Model DT-5000VA Model
Model YIMAI-DT-1000VA YIMAI-DT-3000VA YIMAI-DT-5000VA
Type Step Up & Down Transformer Step Up & Down Transformer Step Up & Down Transformer
Rated Capacity 1000VA / 800W (Power Factor 0.8) 3000VA / 2400W (Power Factor 0.8) 5000VA / 4000W (Power Factor 0.8)
Input Voltage 110V/120V or 220V/240V AC (Selectable) 110V/120V or 220V/240V AC (Selectable) 110V/120V or 220V/240V AC (Selectable)
Output Voltage 110V/120V & 220V/240V AC (Dual Output) 110V/120V & 220V/240V AC (Dual Output) 110V/120V & 220V/240V AC (Dual Output)
Frequency 50/60Hz 50/60Hz 50/60Hz
Efficiency >90% >90% >90%
Output Sockets 2x Universal Sockets 4x Universal Sockets 6x Universal Sockets
Protection Thermal Overload / Circuit Breaker Thermal Overload / Circuit Breaker Thermal Overload / Circuit Breaker
Cooling Method Natural Convection Natural Convection / Forced Air Cooling (Optional) Natural Convection / Forced Air Cooling (Optional)
Enclosure Material Metal (DT-1000VA) / Plastic (Optional) Metal Metal
Dimensions (W×D×H) 180×140×160mm 280×200×250mm 350×250×300mm
Net Weight ~5kg ~12kg ~18kg
Operating Environment 0~40°C, 20~80%RH (Non-Condensing) 0~40°C, 20~80%RH (Non-Condensing) 0~40°C, 20~80%RH (Non-Condensing)
Compliance CE, ISO 9001 CE, ISO 9001 CE, ISO 9001
Target Applications
Travel & International Relocation: Powers laptops, phone chargers, small appliances, and personal electronics when traveling between 110V and 220V regions.
Home Use: Operates imported/exported home appliances (refrigerators, air conditioners, washing machines, TVs, kitchen appliances) across different voltage standards.
Office & Business: Powers office equipment (printers, scanners, computers) and small business devices in international settings.
Industrial & Commercial: Drives small tools, lighting, and equipment in regions with mixed voltage standards.
Outdoor & Camping: Provides portable power for camping equipment, lighting, and small appliances in off-grid locations.
Why Choose YIMAI DT Series Transformer?
YIMAI is a trusted manufacturer of power conversion solutions, with years of experience delivering reliable transformers to global customers. Our DT series transformers are rigorously tested to meet international safety standards (CE, ISO), ensuring exceptional performance, durability, and safety. By choosing YIMAI, you are investing in a cost-effective, portable voltage conversion solution that allows you to use your devices anywhere in the world.
After-Sales Service & Support
We offer a 2-year warranty and lifetime technical support for all DT series transformers. Our customer service team is available to assist with installation, troubleshooting, and maintenance, ensuring maximum uptime for your devices.
FAQ (Frequently Asked Questions)
Q1: What is the difference between a step-up and step-down transformer?A: A step-up transformer increases voltage (e.g., 110V → 220V), while a step-down transformer decreases voltage (e.g., 220V → 110V). The YIMAI DT series supports both functions in one unit.
Q2: Can this transformer handle a 1000W load?A: The DT-1000VA model has a rated capacity of 1000VA, with a typical power factor of 0.8, so the maximum continuous load is approximately 800W. It is recommended to keep the load below 80% of the rated capacity for optimal performance and longevity.
Q3: Is this transformer compatible with both 50Hz and 60Hz?A: Yes, it supports both 50Hz and 60Hz input frequencies, making it compatible with all global power grids.
Q4: Can I use this transformer for my hair dryer or coffee maker?A: Yes, as long as the total power consumption of the device does not exceed the transformer’s continuous load limit (e.g., 800W for DT-1000VA). Note that devices with high inrush current (e.g., motors, compressors) may require a larger capacity transformer.
Q5: Does this transformer have built-in protection?A: Yes, it includes built-in thermal overload protection and a circuit breaker to prevent overheating, short-circuits, and overloads, safeguarding both the transformer and connected devices.
Q6: Is the output voltage stable?A: Yes, the transformer provides stable output voltage with minimal fluctuation (±3%), ensuring safe operation of sensitive electronics.
Q7: Can I use this transformer outdoors?A: The transformer is designed for indoor use. If used outdoors, it must be protected from rain, moisture, and dust to prevent damage.
Q8: What is the warranty period? What after-sales support is provided?A: All DT series transformers come with a 2-year warranty, and we offer lifetime technical support, including troubleshooting and repair services worldwide.
